Denon AVC-X3900H Home Theatre Amplifier

Main Features & Specifications

• All the info on the Denon AVC-X3900H
• Design: 9.4 Channel 8K Home Theatre Amplifier
• New 32-bit DAC
• Input channel level monitoring
• Channel Expander
• Enveloping 3D audio: Feel like you're in the centre of the action with enveloping 3D sound
• Expert ready: You'll be amazed at the available configuration options to best fit your space
• Geared for 8K: Enjoy amazing video quality from the latest 8K technology available
• Optimize for your room: Enhance performance with room correction options from Audyssey (installed) or Dirac Live (optional upgrade available)
• 9 Channel Amplifier
• 105 watts per channel into 8 ohms (20-20,000 Hz) at 0.08% THD, with 2 channels driven
• Dolby®, DTS®, and Auro-3D® surround sound decoding
• Dolby Atmos® and DTS Neural:X processing for use with in-ceiling or "height" speakers for more enveloping home theatre sound
• Dolby Atmos Height Virtualization and DTS Virtual:X create three-dimensional effects without height speakers
• IMAX® Enhanced reproduces the full dynamic range of specially encoded IMAX soundtracks from compatible sources
• Audyssey speaker calibration and system optimization includes:
• MultEQ® XT32 auto setup and room calibration delivers balanced, dynamic sound with enhanced surround performance
• Dynamic Volume anticipates loud sounds to keep volume levels even
• Dynamic EQ improves dialogue, bass response, and surround channel levels at lower volumes
• Sub EQ HT provides individual calibration for four subwoofers, for even bass response throughout the room
• Low Frequency Containment reduces the amount of bass that bleeds into other rooms
• Audyssey MultEQ Editor app for further audio customization (paid app; not included)
• 360 Reality Audio creates an immersive, realistic music experience when connected to a compatible streaming device via HDMI
• Optional Dirac Live® advanced speaker calibration system (requires purchase of software license)
• Requires installation of Dirac Live software on a Mac or PC prior to calibration

Music Streaming

• Built-In Wi-Fi for listening to music from a networked PC, free internet radio, and music services
• HEOS Built-in technology wirelessly connects compatible HEOS components for whole home audio
• Includes support for TuneIn and Spotify®
• Free HEOS app offers easy Wi-Fi control, settings adjustments, and music selection and playback
• Apple AirPlay 2 lets you stream directly from an iPhone® or iPad®
• Supports multi-room audio with compatible wireless speakers
• Built-In Bluetooth for wireless music listening with smartphones, tablets, and compatible computers
• Bluetooth transmission for sending audio from the receiver to Bluetooth-enabled headphones
• Play audio through Bluetooth headphones only, or through Bluetooth headphones and connected speakers simultaneously

Multi-Room

• Dual-Room/Dual-Source Output
• Amp assign function lets you use surround back speaker outputs for front height, Zone 2, Front B, or bi-amping front speakers
• Using powered 2nd-room output allows 7.4-channel sound in main room
• Line-Level 2nd-room output for use with a separate amplifier or powered speakers
• All Zone Stereo mode ensures that both zones stay in sync when playing the same source
• All Zone TV Audio lets you play surround sound in your main room and downmixed stereo in your 2nd room
• Supports both analogue and digital audio connections
• HDMI dual-zone switching for watching video content from different sources in two zones simultaneously
• Zone 2 compatible audio sources: HDMI audio, optical/coaxial digital inputs, analogue audio inputs, Bluetooth, and HEOS music apps

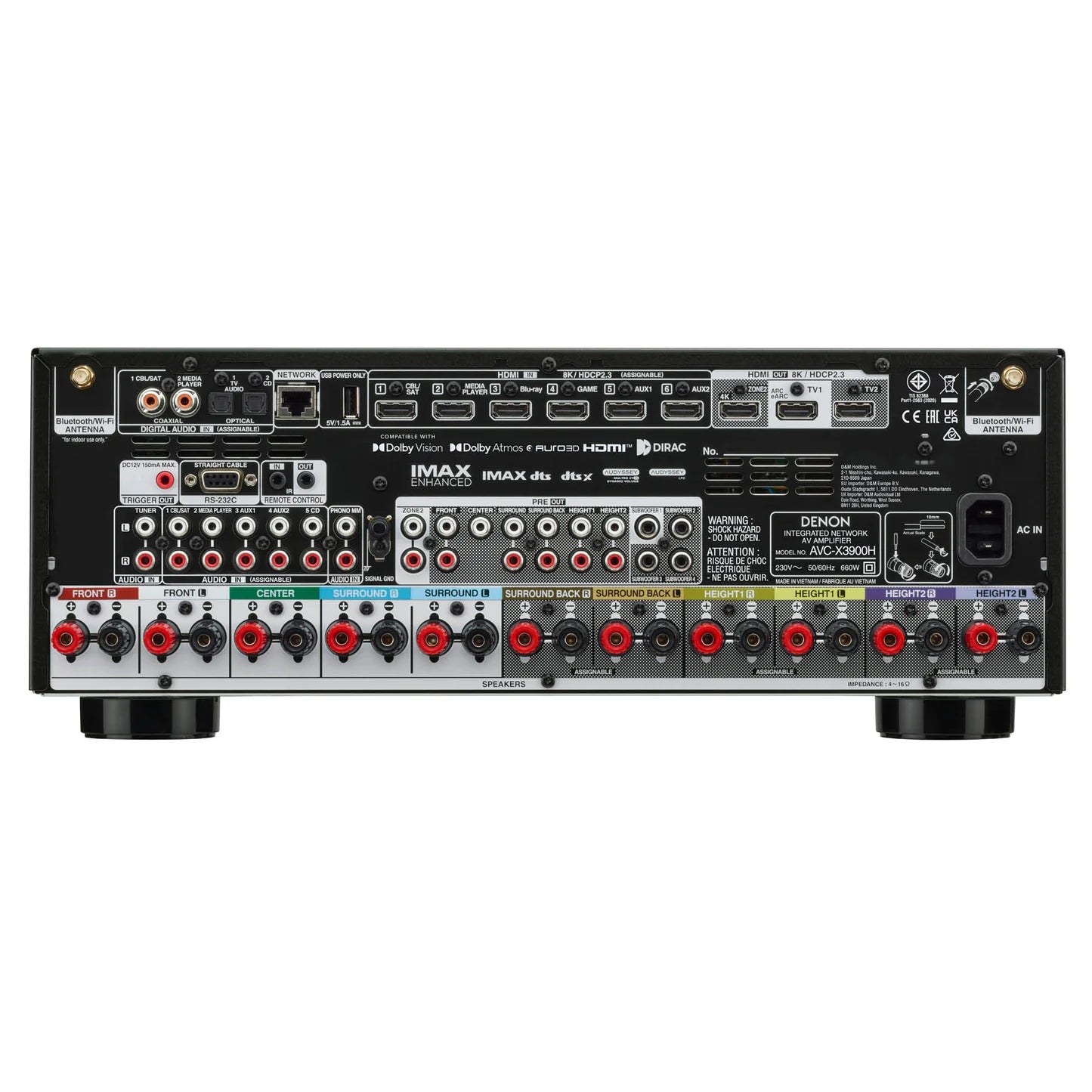

Connections

• HDMI 2.1 audio/video switching: 6 in, 2 out
• All inputs support 8K/60Hz and 4K/120Hz video
• All inputs and outputs support 4K/60Hz video
• Upgraded HDMI board (AMD Free sync)
• Web UI 2.0 + HDMI Diagnostics 2.0
• HDCP 2.3 technology ensures compatibility with Ultra HD sources and TVs
• HDR-compatible for extended picture contrast and brightness with compatible TVs and HDR-encoded content
• Supports HDR10, HDR10+, Dolby Vision®, Dynamic HDR, and HLG
• 3D signal pass-through
• Gaming-Optimized video processing technologies for a smooth, lag-free gaming experience
• Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), Quick Frame Transport (QFT), and Quick Media Switching (QMS) reduce or eliminate lag and frame tearing
• Supports ARC (Audio Return Channel) and eARC (Enhanced Audio Return Channel)
• eARC receives uncompressed surround sound signals including Dolby Atmos and DTS:X via the HDMI connection with your compatible TV
• Digital audio inputs: 2 Optical, 2 Coaxial
• Multi-Zone Analogue Preouts: 1
• 5 Analogue stereo RCA audio inputs
• Centre channel bi-amping
• MM (moving magnet) phono input for connecting a turntable
• 4-channel preamp outputs
• Add a stereo amplifier to expand your system to 11 channels
• Four discrete line-level subwoofer outputs for more precise multi-subwoofer setups
• Ethernet port for network connection
• Outputs for 11 speakers (Front L/R, Centre, Surround L/R, Surround Back L/R, Height1 L/R, Height2 L/R)
• Receiver can power a maximum of 9 channels at once
• Full-Sized headphone jack

General

• AM/FM Radio Tuner: No. Connect to the Internet via Wi-Fi to access local and international radio stations
• Free HEOS app lets you use your Apple® or Android™ device as a Wi-Fi remote
• Setup Assistant guides you through the initial connection process and settings
• HDMI standby pass-through allows HDMI switching without powering up receiver
• Intuitive, full-colour on-screen guide
• BT LE Audio *via firmware update
• Remote Control
• Included Accessories: Backlit Remote Control (RC-1262), 2 X AAA Batteries, Sound Calibration Microphone, Microphone Stand, Power Cable, External Antennas For Bluetooth/Wireless Connectivity, Quick Start Guide
• Finish: Black
• Dimensions (WxHxD): 434 x 167 x 389 mm
• Weight: 12.5 kg
• Manufacturer's Warranty: 2 Years

Note: Features & Specifications Subject To Change Without Notice. E&OE.
