JBL Summit K2 Floorstanding Loudspeakers

Translation missing: en.products.product.price.regular_price $169,000.00
Translation missing: en.products.product.price.sale_price $169,000.00 Translation missing: en.products.product.price.regular_price
Translation missing: en.products.product.price.unit_price
Tax included.

The JBL Summit K2 is a loudspeaker with rather serious intentions. Drawing on four generations of Project K2 development, this substantial three-way floorstander combines a 15-inch woofer and 10-inch mid-bass driver with an unusual compression-driver arrangement, bringing together three D2815 units and a large-format HDI horn. The result is designed to deliver music with remarkable clarity, scale and immediacy, from the finest details to the full force of a demanding orchestral passage or a particularly enthusiastic drum solo. JBL’s Hybrid Carbon Cellulose Composite cones provide the stiffness and control needed to keep bass weighty and assured, without losing composure when the volume rises.

The engineering continues throughout, from the carefully designed crossover network to the curved, internally braced enclosure, all intended to preserve the signal and keep unwanted resonances in check. IsoAcoustics isolation feet help manage vibration, while flexible connection options allow the Summit K2 to work in conventional stereo systems or more elaborate bi-amped and tri-amped arrangements. Finished in high-gloss black with platinum accents or ebony veneer with gold detailing, it has the presence to match its considerable ambitions. For listeners who want their music reproduced on a grand scale, with both refinement and a genuine sense of physical impact, the Summit K2 makes a compelling case.



On Demonstration at Carlton Audio Visual - Available Soon

Shipping cost is based on weight. Just add products to our quote request form and we will get back to you with a shipping quote and a link to securely checkout online!
Ask a question

Ask a Question

* Required fields

 Size guide Share
JBL Summit K2 Floorstanding Loudspeakers

JBL Summit K2 Floorstanding Loudspeakers

Product description
Shipping & Returns

Main Features & Specifications

  • All the info on the JBL Summit K2
  • Design: 3-Way Floorstanding Speaker
  • 3 x patented D2815 1.5-inch (38 mm) Dual-diaphragm, Dual-motor High-frequency Compression Drivers

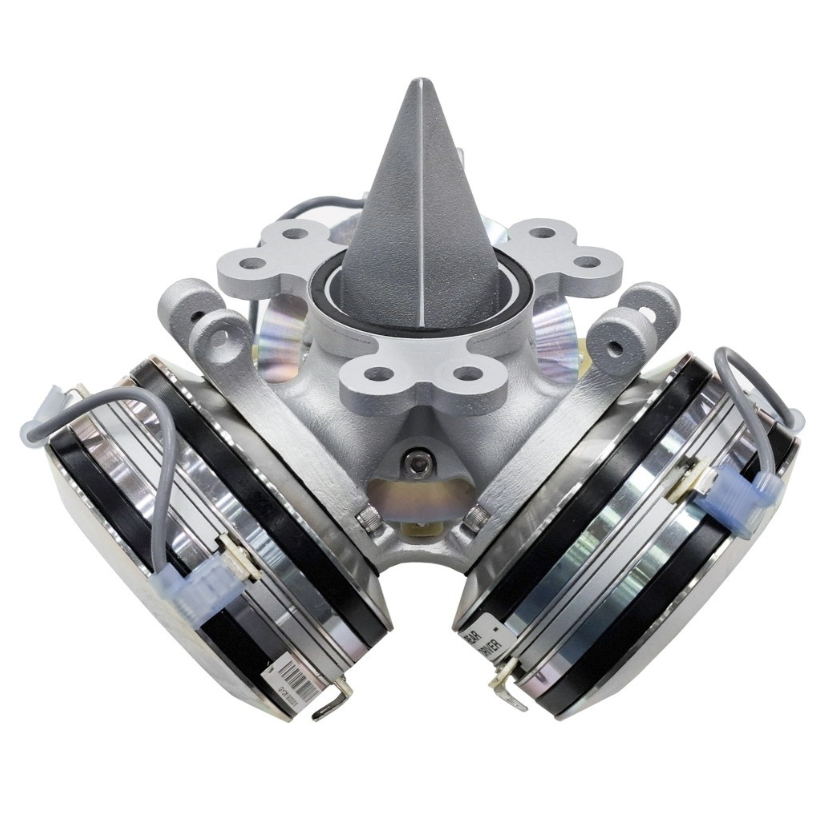

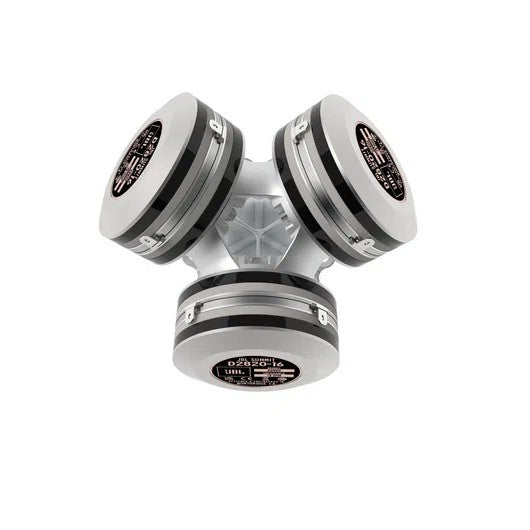

  • Patent-pending Constant Expansion Rate / Phase Coherent 3-into-1 manifold
  • Patented custom High-Definition Imaging (HDI™) Sonoglass® High-frequency Horn
  • 10-inch (250 mm) Cast-frame, Differential Drive, Triple-layer Hybrid Carbon Cellulose Composite Cone (HC4) Mid-Bass
  • 15-inch (380 mm) Cast-frame, Differential Drive, Triple-layer Hybrid Carbon Cellulose Composite Cone (HC4) Woofer
  • MultiCap™ Crossover Network with Single-wire, Bi-amp/Bi-wire, and Tri-amp/Tri-wire Connectivity
  • Finely Crafted and Beautifully Detailed Enclosure with Carbon Fibre Baffle Trim
  • Soft-curved Cabinet Walls with Heavily Braced and Dampened Construction
  • JBL | IsoAcoustics® Adjustable Acoustic Isolation Feet

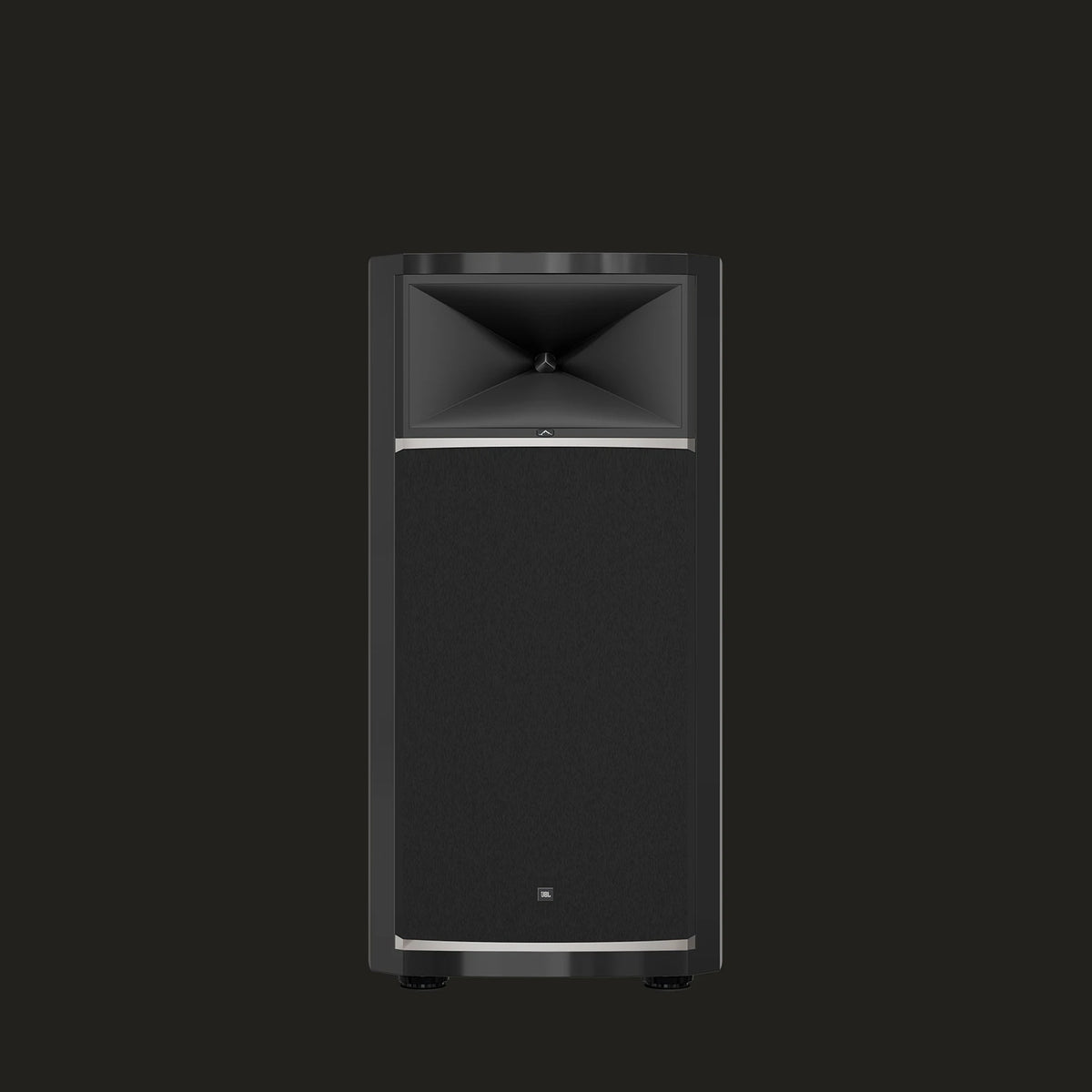

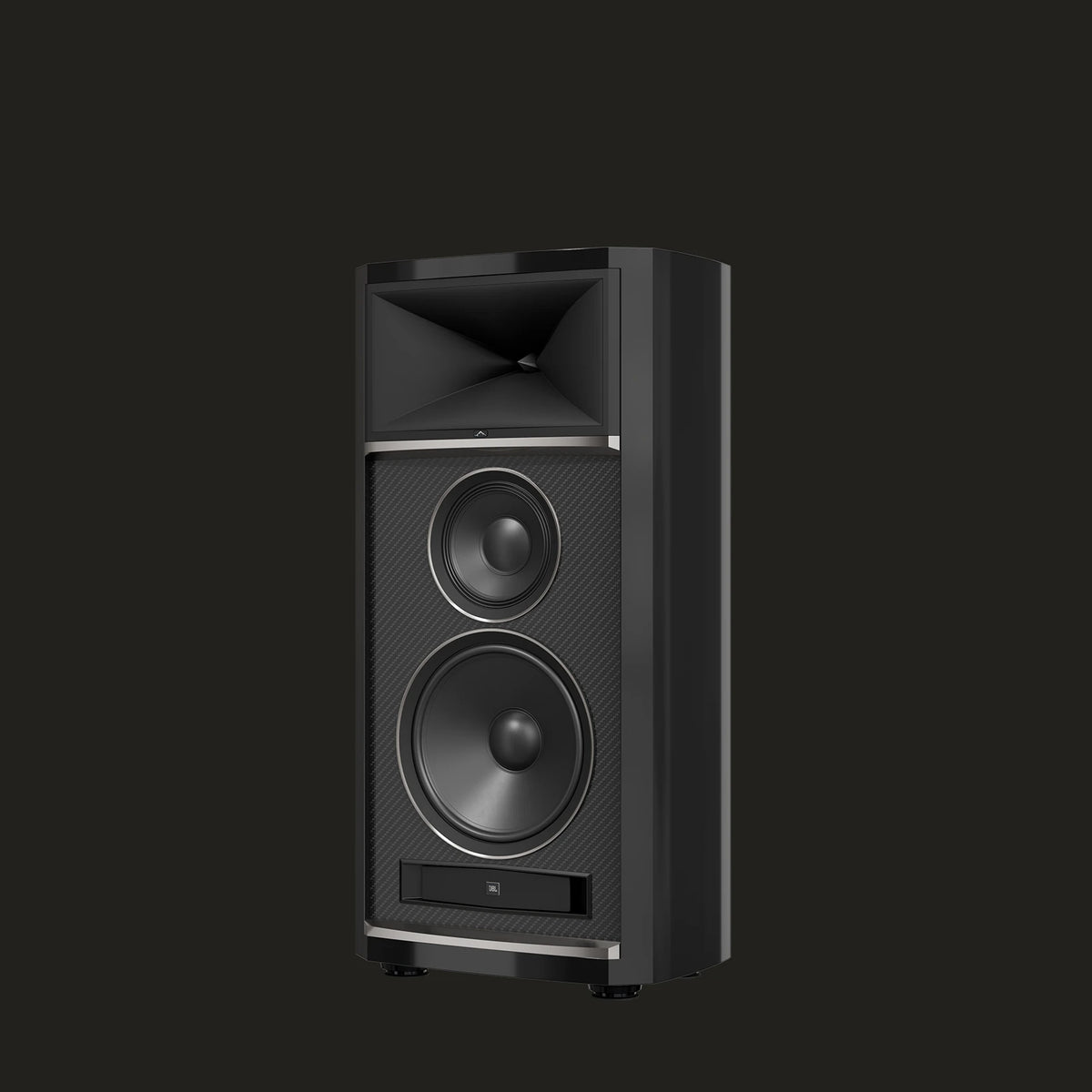

  • Luxurious High Gloss Finishes with Summit Platinum or Summit Gold detailing

Technical

  • High Frequency Control: High-definition imaging (HDI™) Sonoglass® acoustic horn
  • High Frequency Transducer: Triple, D2815; Dual 1.5-inch (38mm) annular ring Teonex® diaphragms, Dual-motor D2 compression drivers mounted to a 3-into-1 manifold mated to the High-Definition Imaging (HDI) horn
  • Mid-Bass Frequency Transducer: JMW250SC 10-inch (250mm), Triple-layer Hybrid Carbon Cellulose Composite Cone (HC4) with dual-inverted spiders, a 3-inch differential drive, dual voice coil motor, cast aluminium frame, and treated-cloth reverse progressive accordion-edge surround
  • Low Frequency Transducer: JW380SC 15-inch (380 mm), Triple-layer Hybrid Carbon Cellulose Composite Cone (HC4) with dual inverted spiders fore and aft of the motor, a 4-inch differential drive, dual voice coil motor, cast aluminium frame, and half-forward-roll surround
  • Recommended Amplifier Power (RMS): 25-600 Watts RMS
  • Frequency Response (-6dB on-axis, anechoic): 24.6 Hz - 23.5 kHz
  • Frequency Response (-10dB on-axis, anechoic): 18.2 Hz - 26.5 kHz
  • Sensitivity (2.83V@1m): 92 dB
  • Maximum SPL: 118.8 dB
  • Acoustic Centre Height (centred, from floor): 1005 mm
  • Impedance (Nominal / Minimum): 4 Ohms / 3.27 Ohms (@86.8 Hz)
  • Crossover Frequencies / Type / Slope: 270Hz, 1080 Hz/Full MultiCap/Acoustically symmetric 3rd and 4th order, 3-way crossover
  • Internal Wiring: Ohno-Continuous-Cast (OCC) Long-crystal Oxygen-free Silver-plated Copper Wire

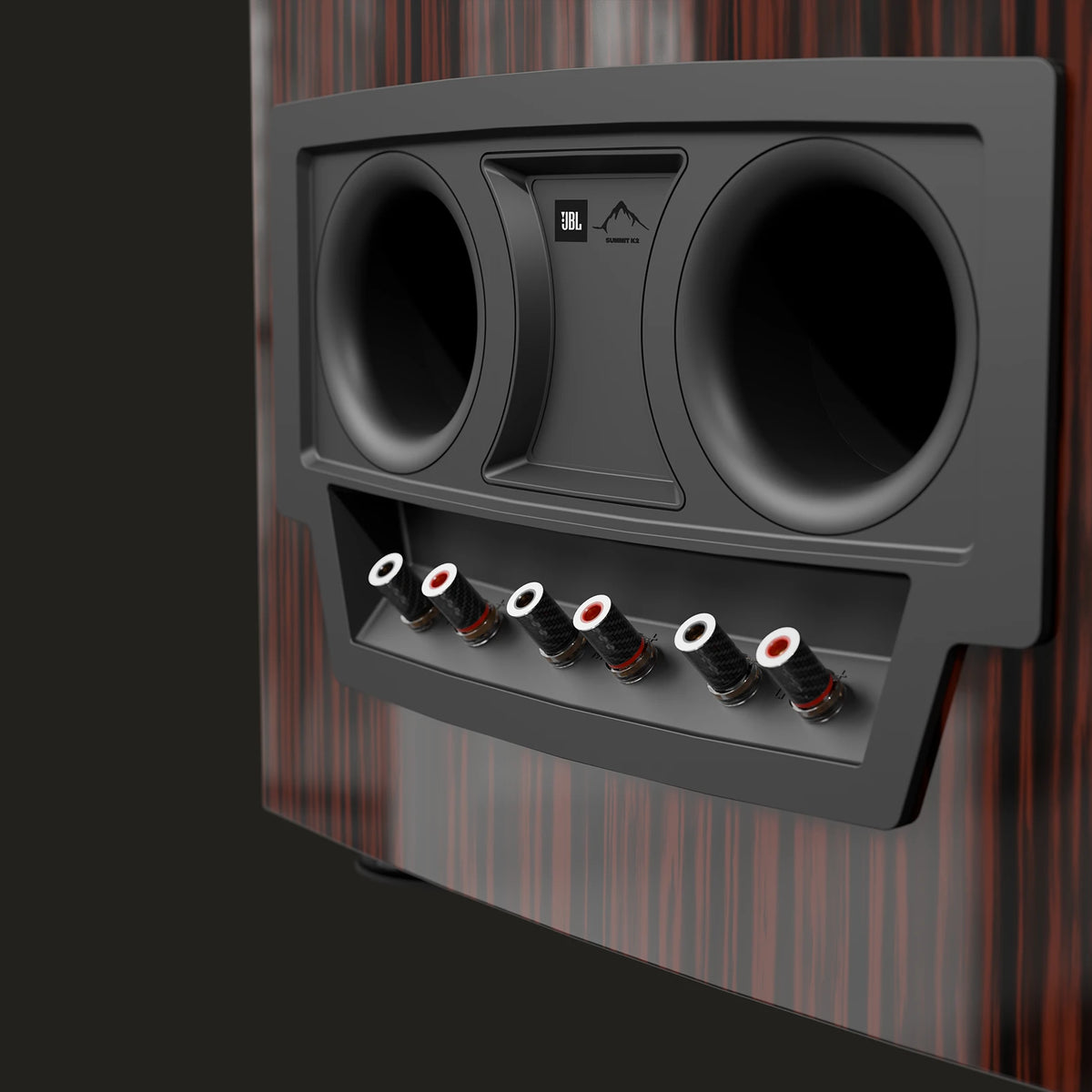

  • Controls: Tri-amp / Tri-wire capable with 3-pairs of binding posts

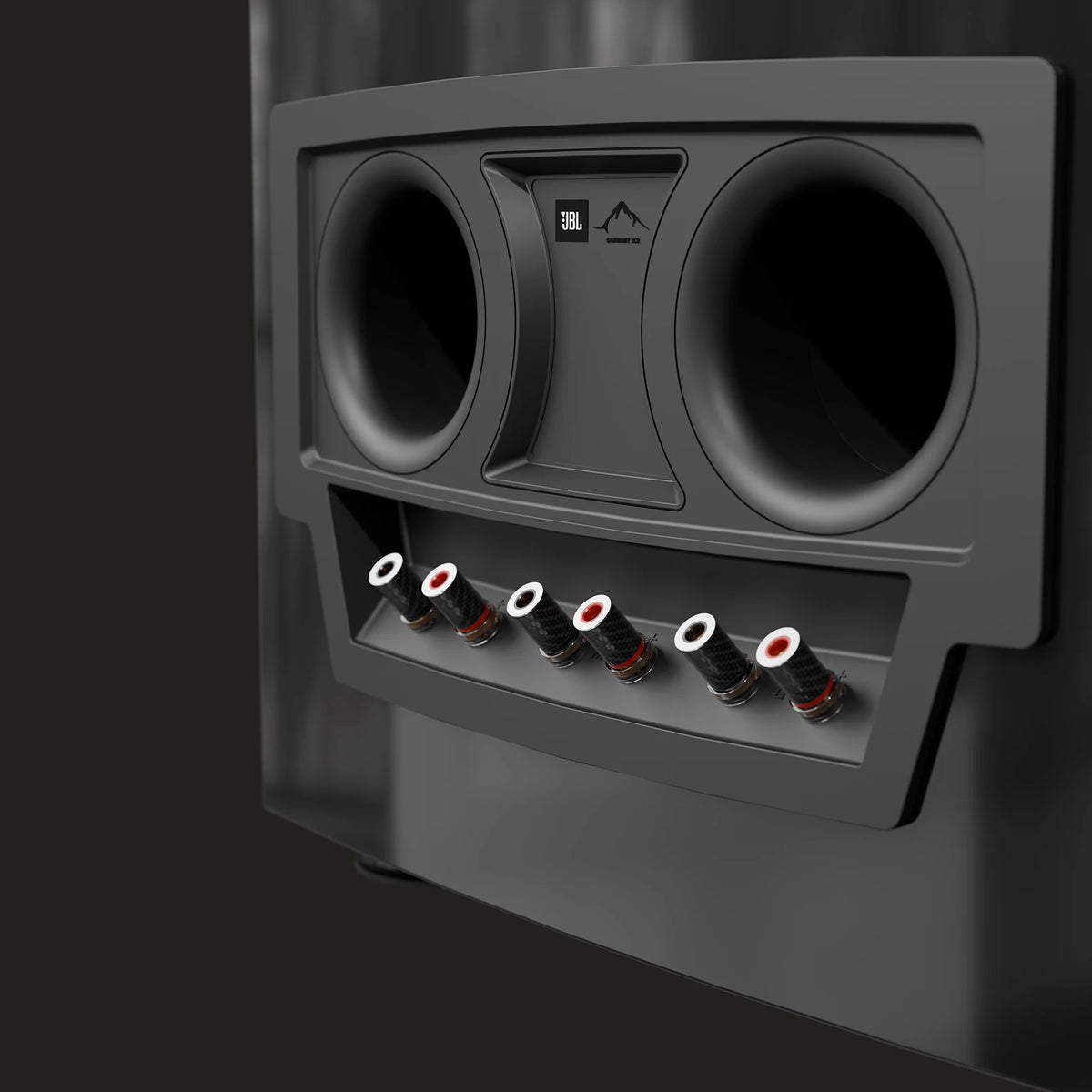

  • Input Type: Rhodium-plated, Silver-coated, Oxygen-free, Pure Copper Core Binding Posts with a Chrome-plated Brass Carbon-fiber wrapped shell and Nylon / Glass-fibre insulators (3 pairs)
  • Enclosure Type: Internally offset multi-braced and damped pre-stressed pressed curved walls made from sustainably sourced engineered wood with multi-component lining

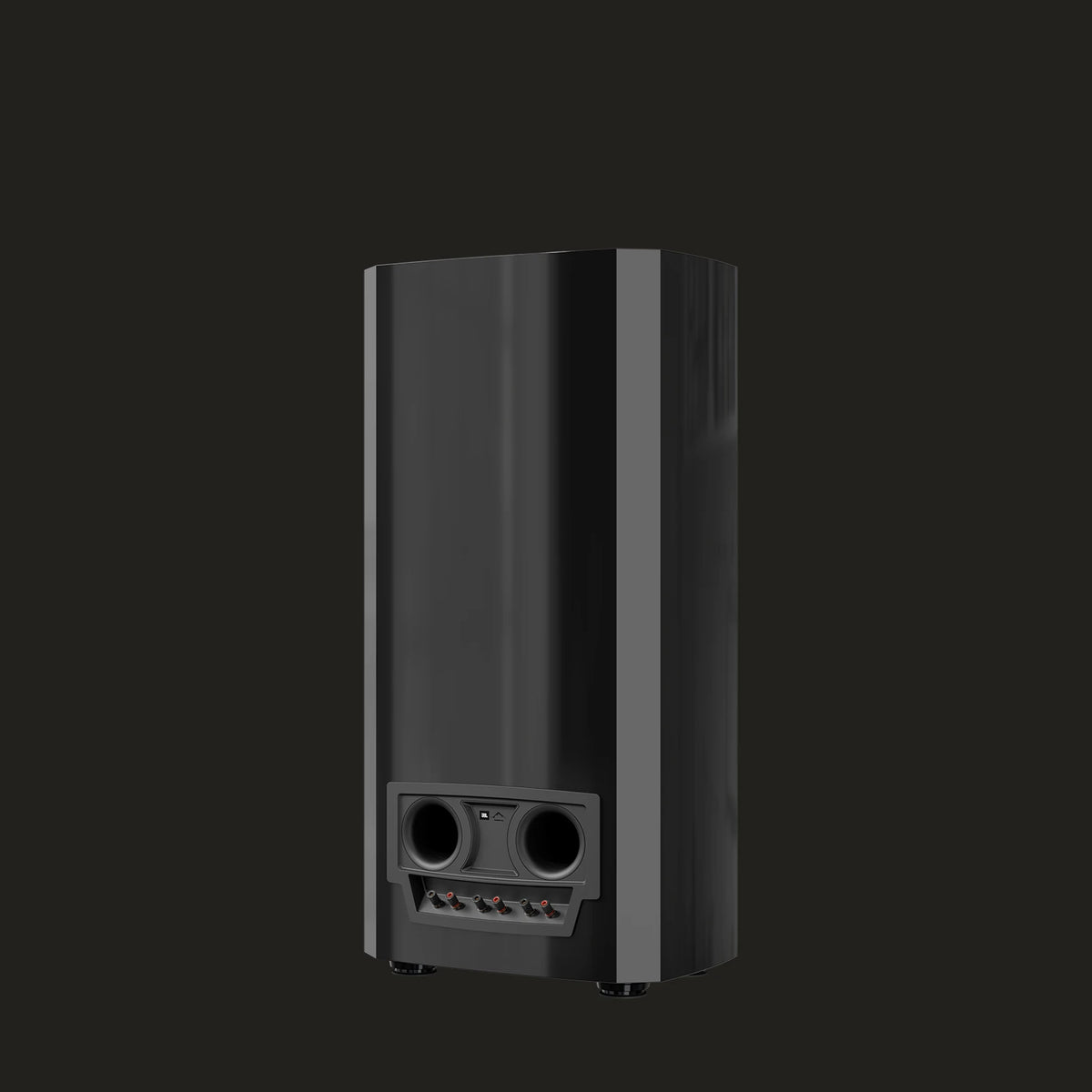

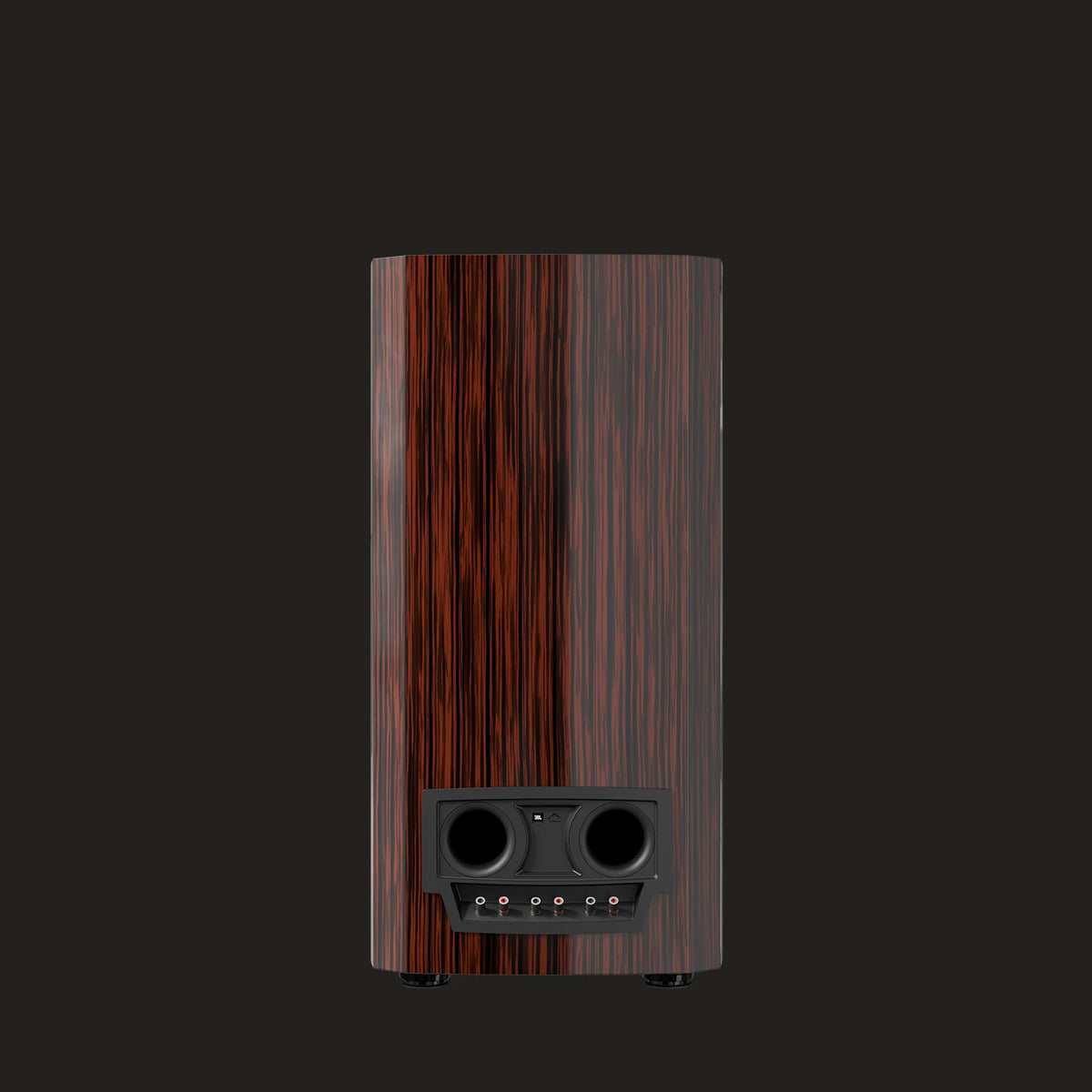

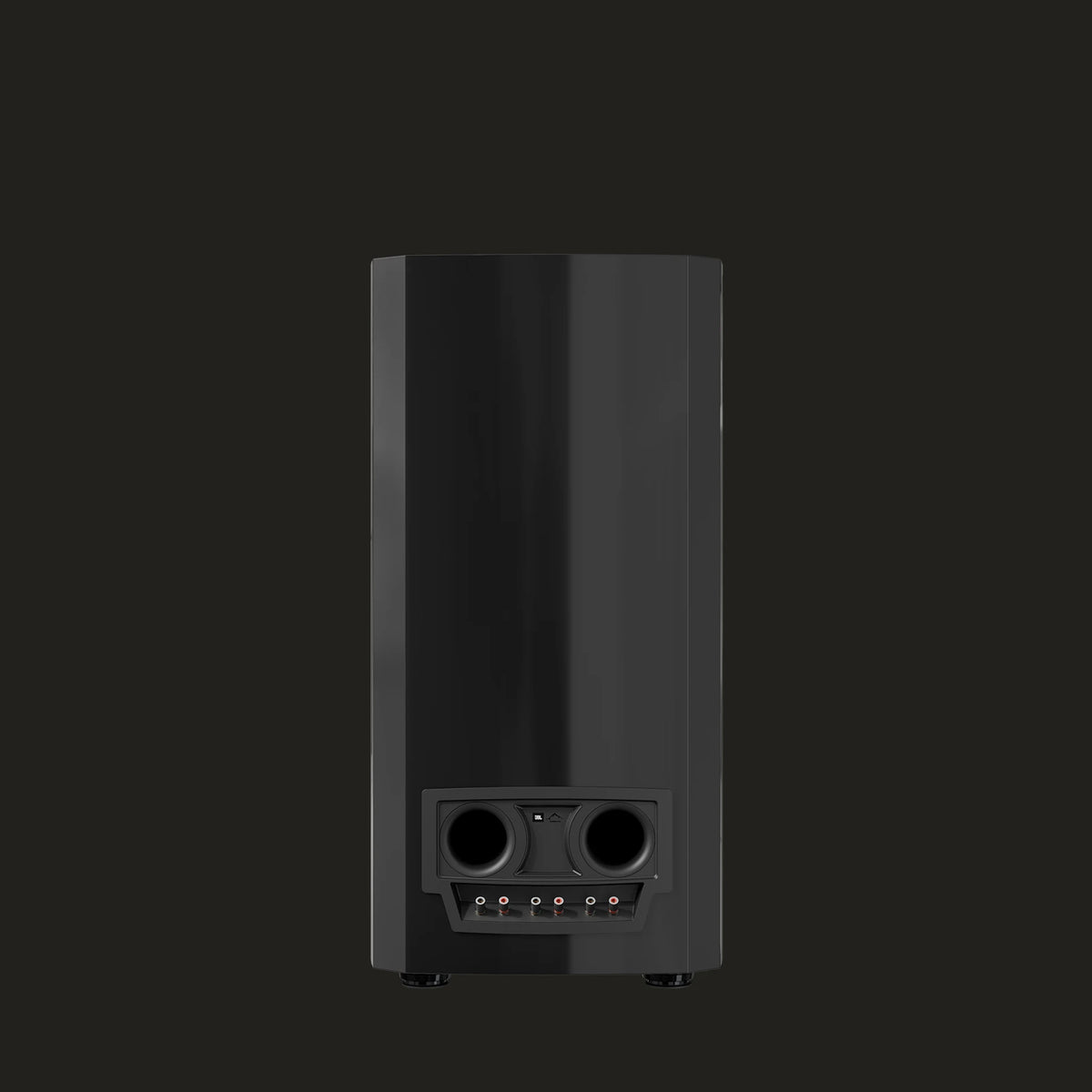

  • Enclosure Tuning: Dual rear flared bass ports

General

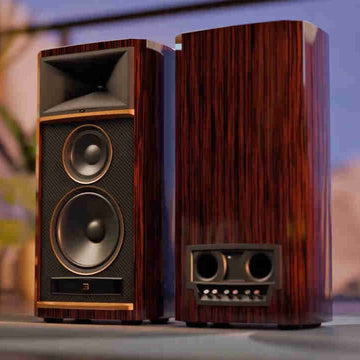

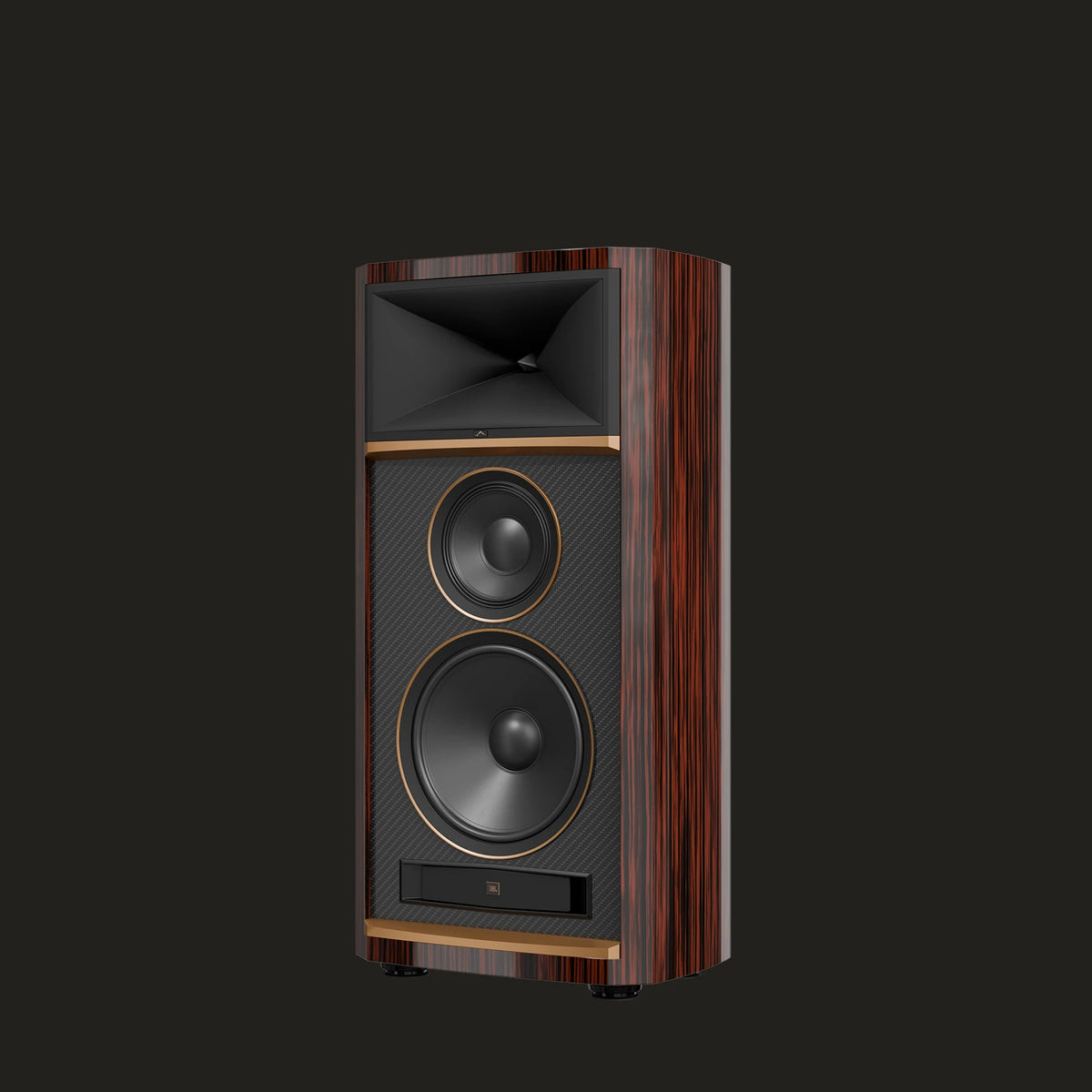

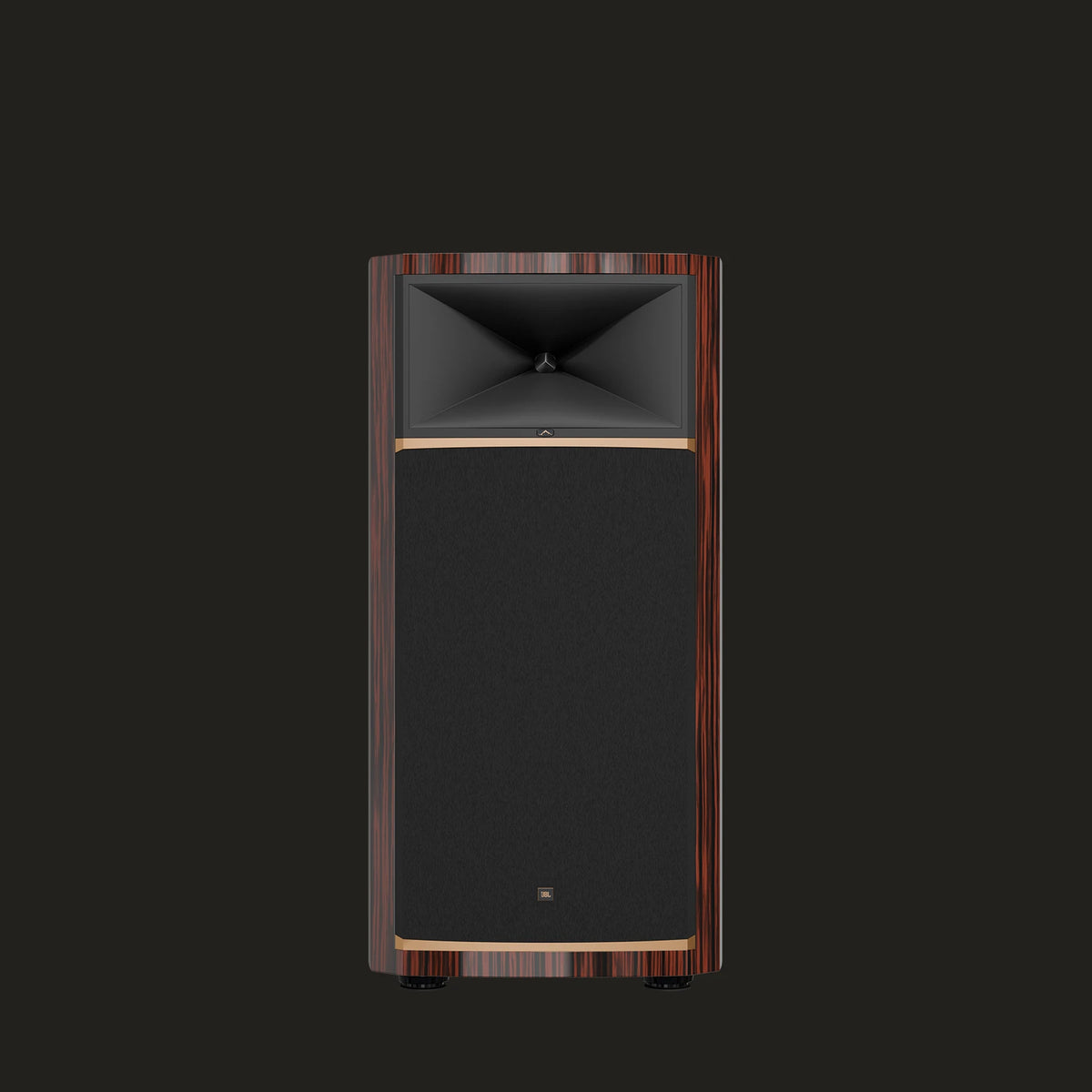

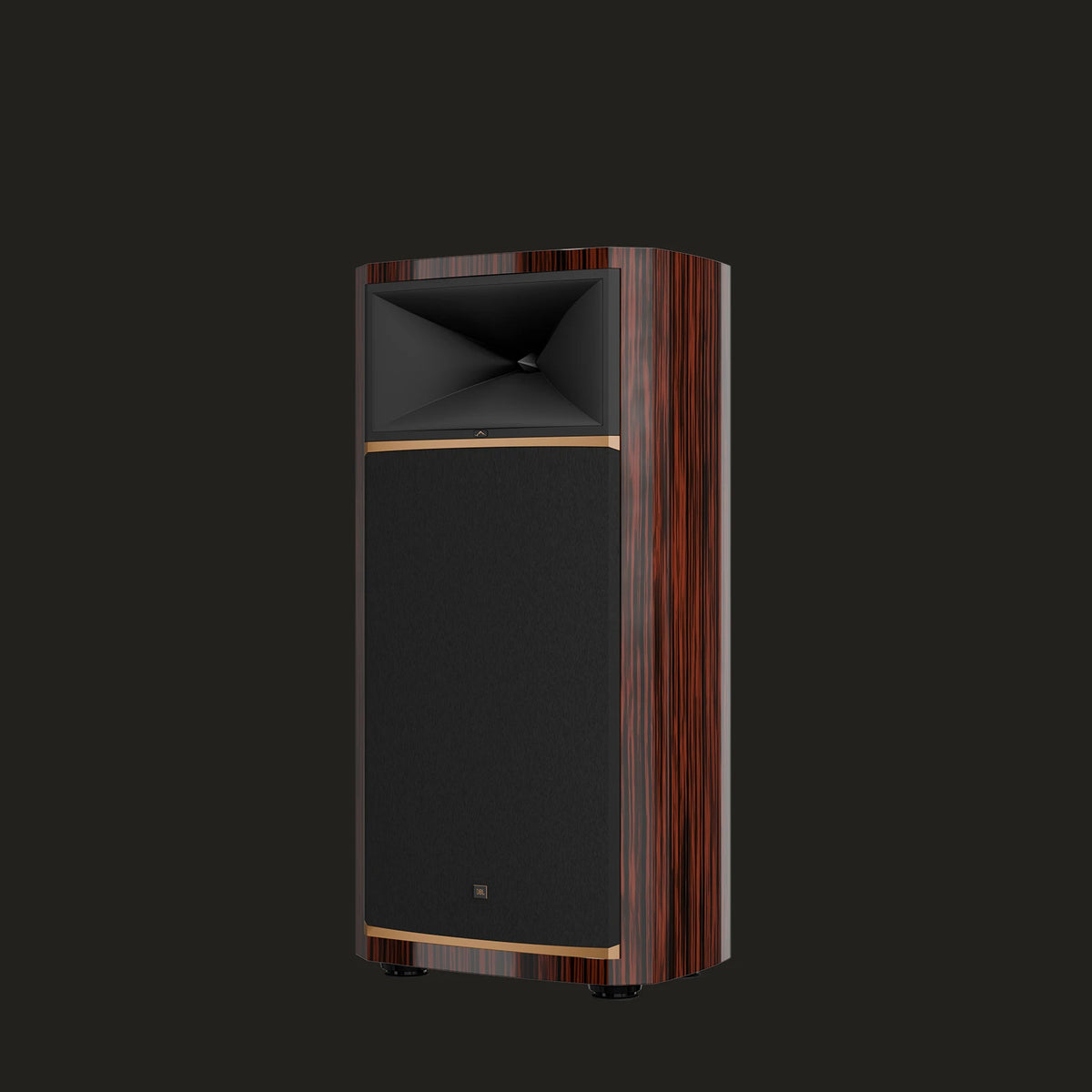

  • Available Finishes: Black High Gloss (BG), Macassar Ebony Wood Veneer with High Gloss (EG)
  • Dimensions (WxHxD): 635.3 x 1,280.2 x 458.7 mm
  • Weight: 108.4 kg each
  • Manufacturer’s Warranty: 5 Years

Note: Features & Specifications Subject To Change Without Notice. E&OE.
