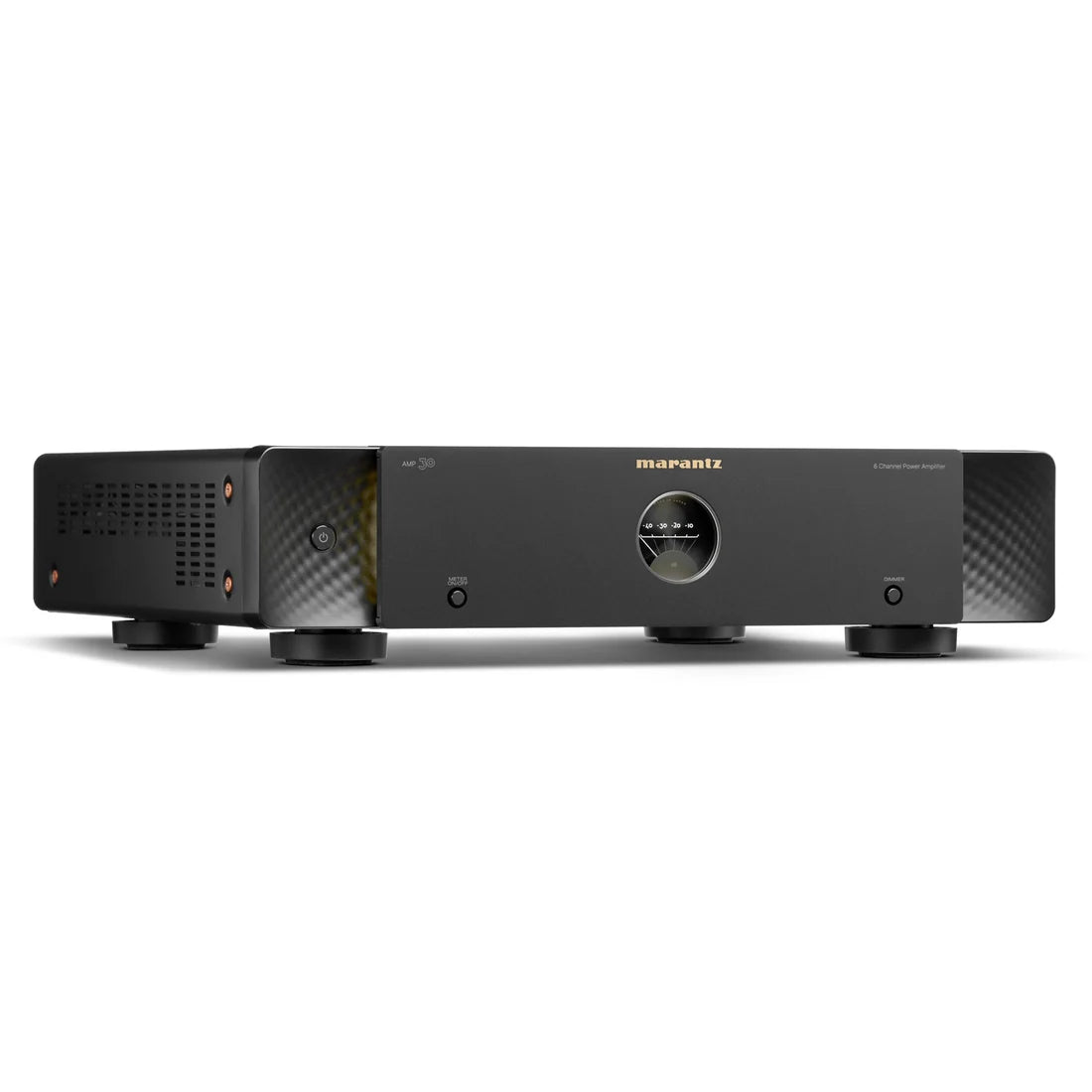

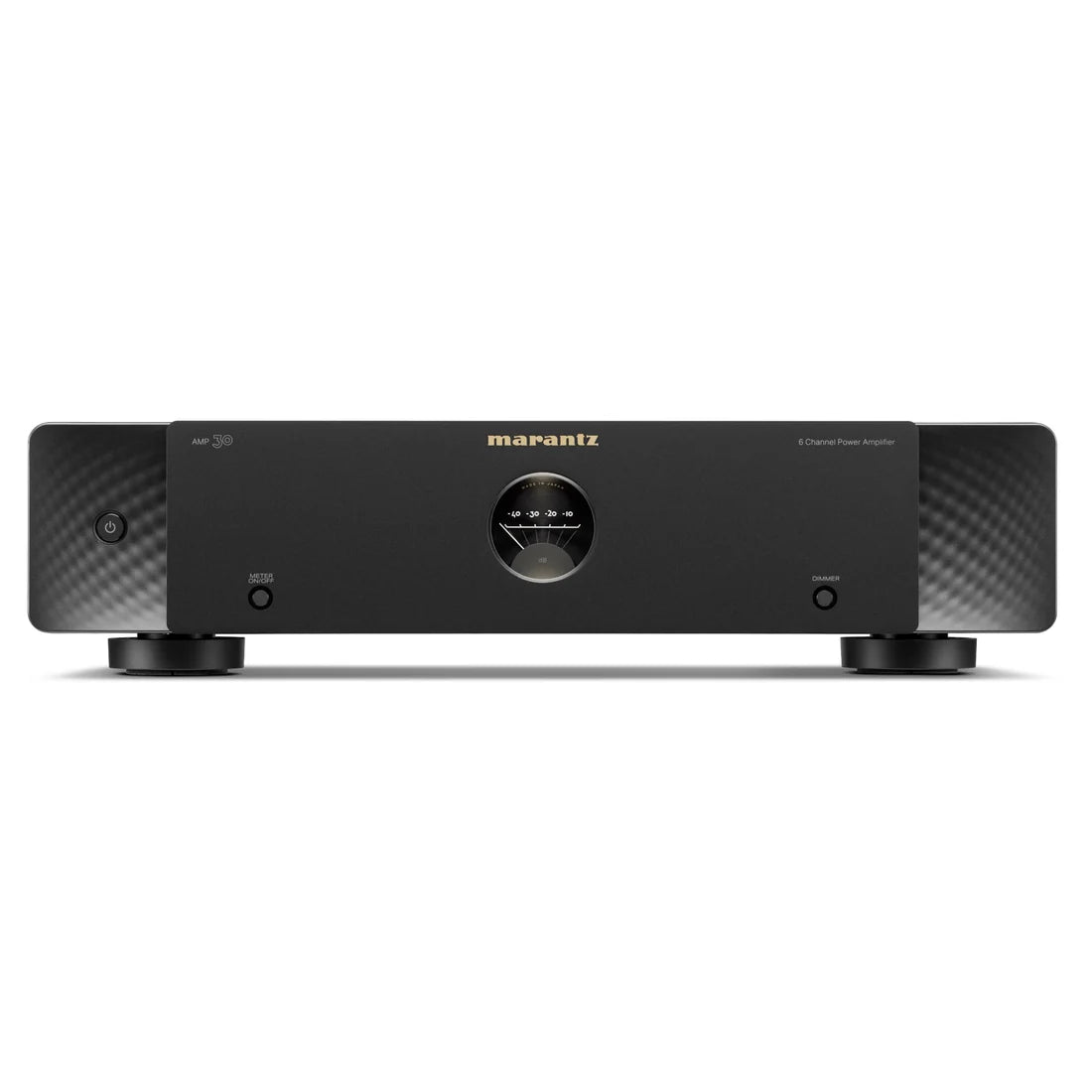

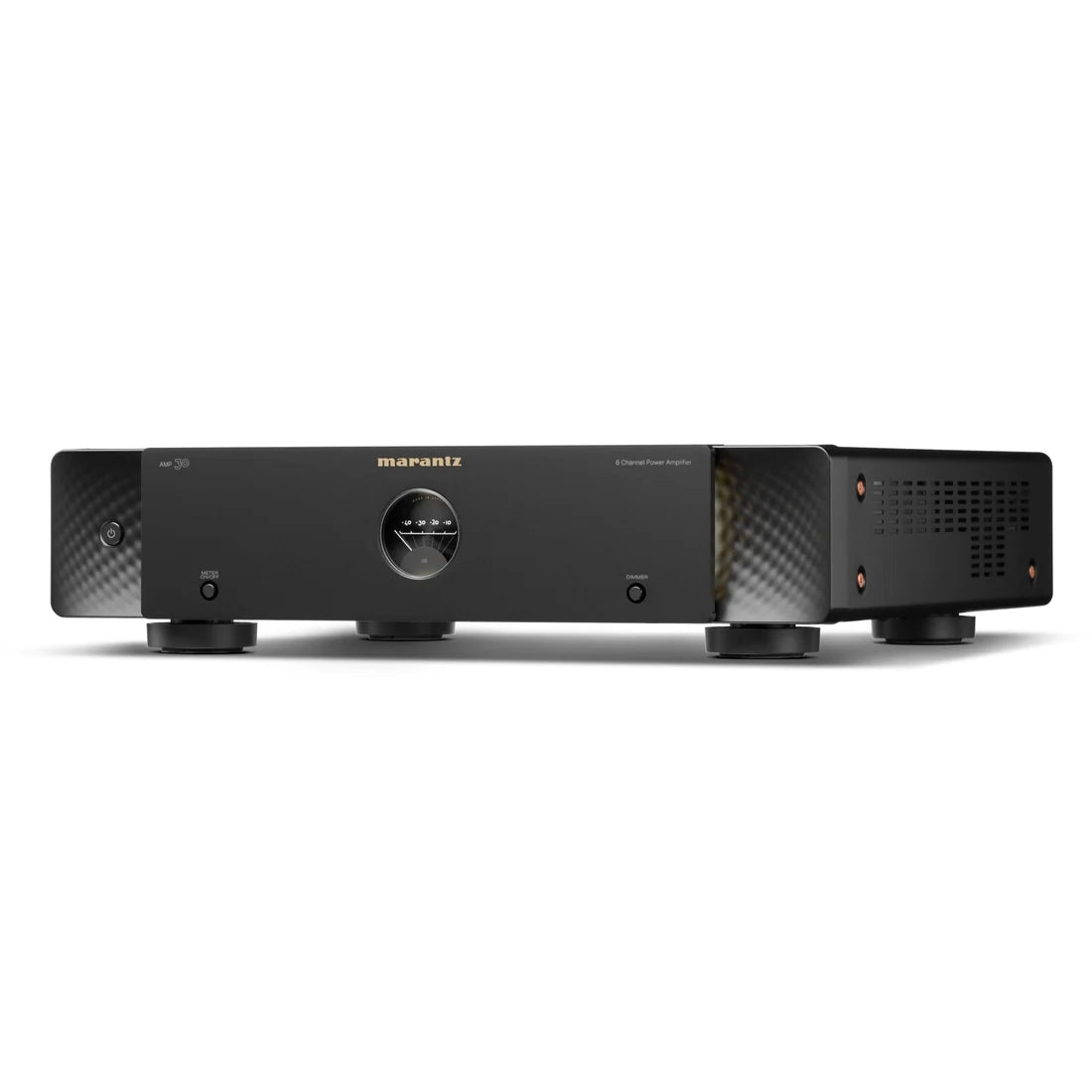

Marantz AMP 30 6 Channel Power Amplifier
The Marantz AMP 30 is a powerful slimline six-channel amplifier, designed to partner with an AV preamplifier to form an outstanding home theatre system. With 200 Watts per channel into 8 Ohms and 400 Watts into 4 Ohms, it combines Marantz’s exclusive HDAM technology with highly efficient, low-distortion Class D amplification to deliver serious power across multiple channels. For more ambitious installations, additional AMP 30, AMP 20 or AMP 10 power amplifiers can be added to accommodate more complex speaker configurations. The custom-developed Class D amplification and refined HDAM circuitry are designed to produce the scale, control and dynamics required for a genuinely reference-level home theatre experience, while Marantz Sound Master tuning brings a careful balance of component selection and engineering to the final result.
There is rather more to the AMP 30 than what happens inside the chassis, too. Its steel and aluminium construction has a distinctly modern interpretation of Marantz’s heritage, with a subtly textured front panel and the familiar porthole design illuminated by soft, dimmable sidelights. It is an elegant piece of design without making a great fuss about it, which seems entirely appropriate for an amplifier intended to sit at the heart of a serious home theatre system. As ever with Marantz, the approach is a considered blend of engineering, craftsmanship and sound, with every element selected and tuned by the company’s Sound Masters for both performance and presentation.
Marantz AMP 30 6 Channel Power Amplifier
Main Features & Specifications
- All the info on the Marantz AMP 30
- Design: Reference Multi-Channel Power Amplifier for Home Theatres
- Perfect match for the Marantz AV 30 Home Theatre Preamp/Processor
- 6 Channel high-performance Class D amplifier designed for multi-channel surround sound
- 200 Watts per channel into 8 Ohms (1k Hz) at 0.05% THD, with 2 channels driven
- 400 Watts per channel into 4 Ohms (1k Hz) at 0.7% THD, with 2 channels driven
- Bridged Power (BTL): 400 Watts per channel into 8 Ohms (1k Hz) at 0.05% THD, with 2 channels driven
- Bi-amp mode drives high and low frequency sections of loudspeakers independently
- Hyper Dynamic Amplifier Module (HDAM®) and current feedback amplification for accuracy and control under high-drive conditions

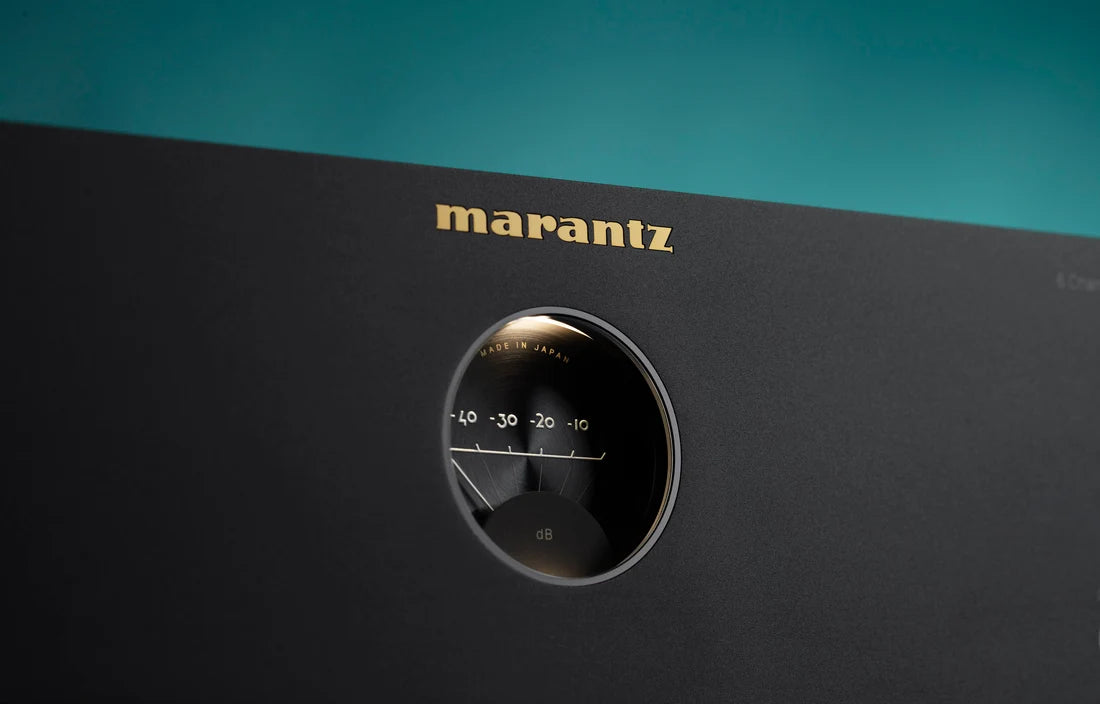

- Illuminated analogue level meter
- Selectable auto-standby function

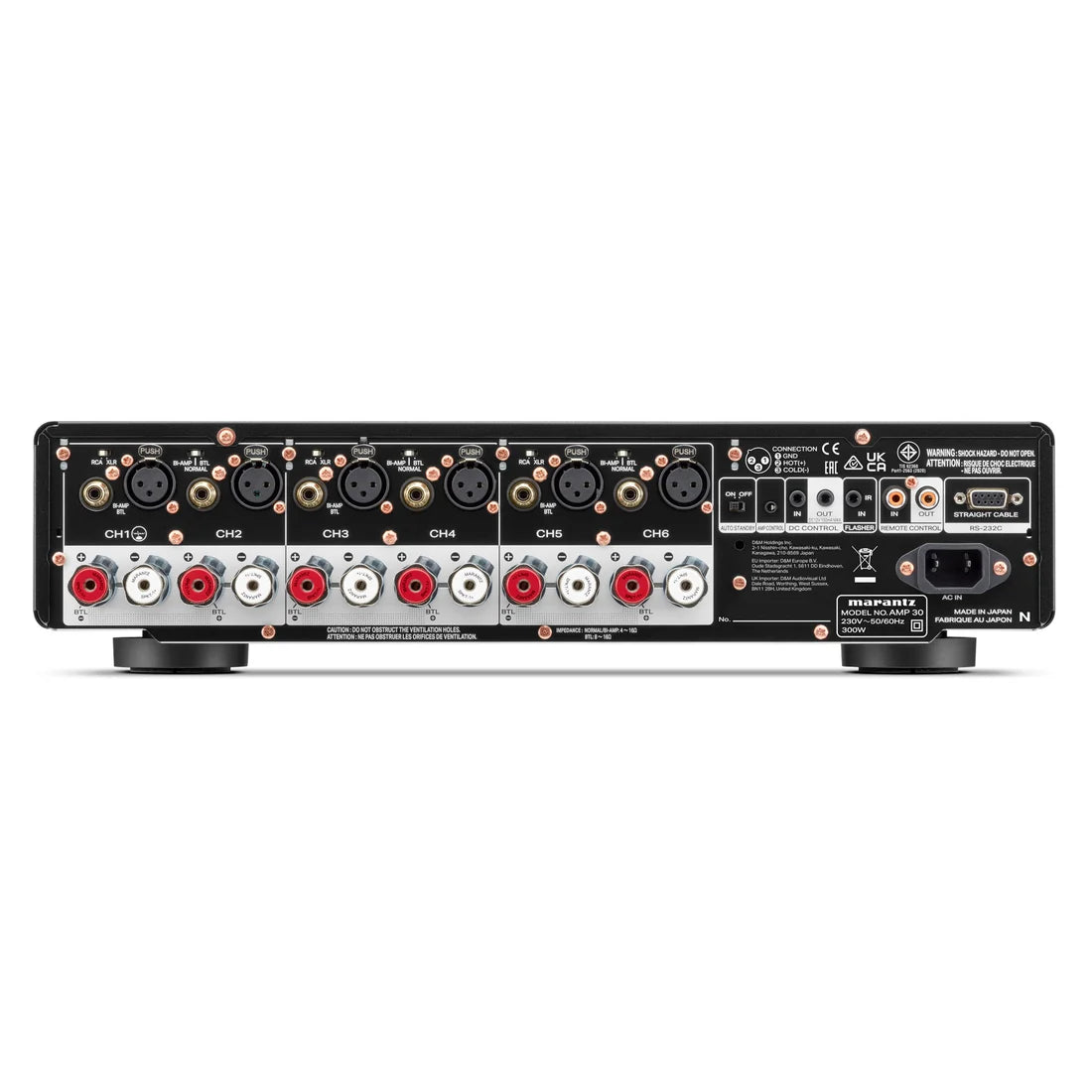

Connections
- Unbalanced Stereo RCA and Balanced Stereo XLR inputs for each channel
- Binding Post Speaker Terminals for each channel
- RS-232C and remote (IR) connections for use with optional third-party controllers
- 12-volt trigger output for sending power commands to external gear, like a preamp/processor or cooling fan
- Amp control input to link power and standby with compatible connected Marantz components
- Marantz RCA remote control input and output
- Removable Power Cable: Upgrade to a Premium Power Cable for better performance
General
- Included Accessories: Quick Start Guide, Mains Power Cable, Amp Control Cable, Remote Control Cable
- Dimensions (WxHxD): 442 x 111 x 442 mm
- Weight: 10.0 kg
- Manufacturer’s Warranty: 5 Years
Note: Features & Specifications Subject To Change Without Notice. E&OE.
