Mission 778S Music Streamer

Translation missing: en.products.product.price.regular_price $1,899.00
Translation missing: en.products.product.price.sale_price $1,899.00 Translation missing: en.products.product.price.regular_price
Translation missing: en.products.product.price.unit_price
Tax included.

As with any network audio device, the streaming platform’s stability and fidelity are paramount. With the 778S, beneath the Mission styling lies a platform developed in collaboration with Silent Angel, maestros in high-end digital audio streaming. Powered by a custom implementation of the Silent Angel streaming engine — and optimised by Mission engineers — the 778S delivers superior fidelity, rock-solid stability, and remarkable versatility.

Accessing music is effortless through the Mission 778S app, which carries the full power of the Silent Angel ecosystem. Stream directly from Spotify Connect, TIDAL Connect, Qobuz Connect, TuneIn Radio, DLNA, Airplay 2 and USB HDD devices, all with a sleek, responsive interface. And for advanced users, the 778S is fully Roon Ready — certified for bit-perfect playback and seamless integration over Wi-Fi or Ethernet, with no setup required.

Shipping cost is based on weight. Just add products to our quote request form and we will get back to you with a shipping quote and a link to securely checkout online!
Compare Ask a question

Ask a Question

* Required fields

 Size guide Share
Mission 778S Music Streamer

Mission 778S Music Streamer

Product description
Shipping & Returns

Main Features & Specifications

  • All the info on the Mission 778S
  • Design: High Performance Network Music Streamer
  • Perfect Match for the Mission 778X Integrated Amplifier

Design Philosophy and Core Technology

  • ESS Sabre ES9038Q2M 32-bit DAC
  • RK3399 ARM® Cortex-A72 @ 2.0GHz ARM® Cortex-A53 @ 1.5GHz
  • iOS / Android Mission 778S App control
  • Powered by Silent Angel Streaming technology (IEEE 802.11 a/b/g/n/ac,2.4/5GHz)
  • Native support for Spotify Connect, TIDAL Connect, Qobuz Connect, TuneIn Internet Radio, Roon Ready, AirPlay 2
  • Music from network shared storage (over SMB/CIFS)
  • USB storage / flash drive / USB hard disk (Single-partition FAT32, exFAT)
  • 23” High contrast OLED display

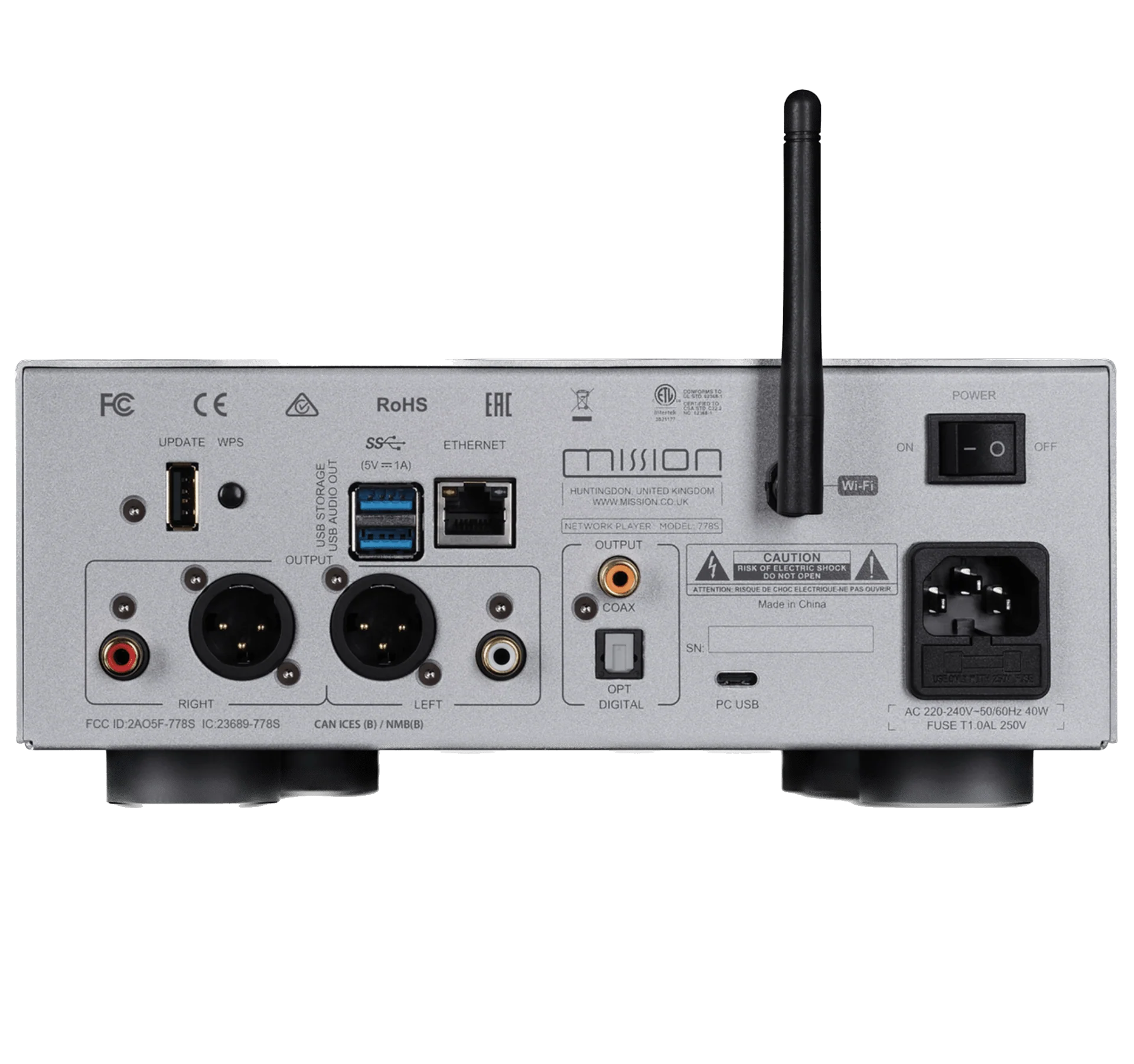

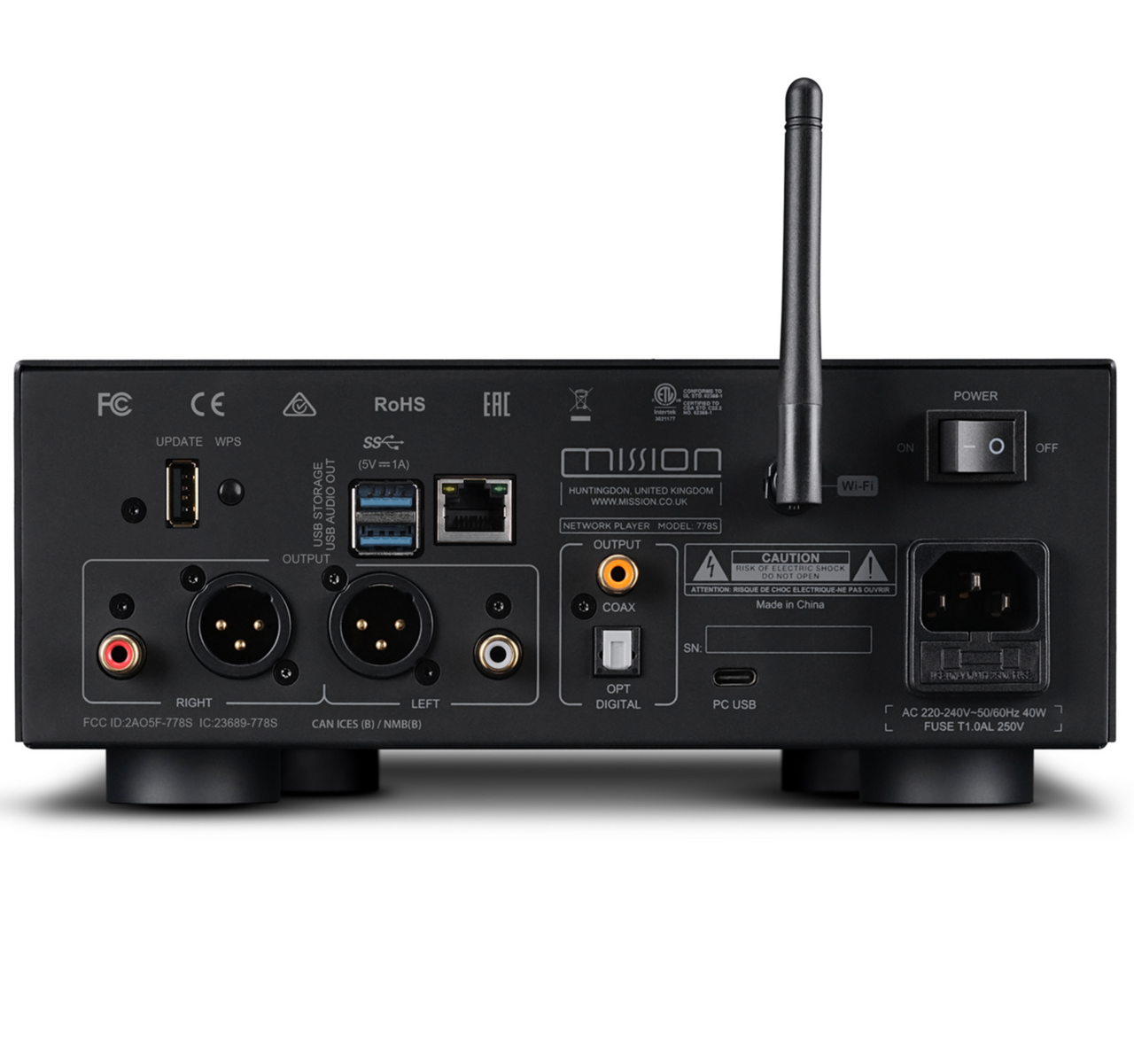

Inputs

  • 1 x PC USB (USB Type-C)
  • 1 x Ethernet 10/100/1000Base-T Ethernet
  • 1 x USB-A for MCU Update
  • 2 x USB-A for USB Storage

Outputs

  • 1 x RCA (pair) analogue outputs
  • 1 x Balanced XLR (pair) analogue outputs
  • 1 x Optical digital output
  • 1 x Coaxial digital output
  • 2 x USB-A for USB Audio Out
  • 1 x Headphone

Supported File Formats

  • DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)
  • PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF, APE
  • Compressed (lossy) Audio: MP3, WMA, AAC, OGG

Sampling Frequency

  • PCM: 44.1kHz-768kHz (705.6kHz/768kHz Fixed-point supported via App streaming)
  • DSD: DSD64, DSD128, DSD256(DoP), DSD512(PC USB)

Digital Section

  • Digital Output Intensity: 500 +/- 50mVpp
  • Output Impedance: 75 Ohms
  • Frequency Response: -0.01dB (20Hz - 20kHz, ref.1kHz)
  • Sampling Frequency: 192kHz / 24-bit
  • Digital Output: 1 x Coaxial, 1 x Optical, USB Audio Out

D to A Converter

  • Variable Output Voltage (0dBFS, 1kHz): 0 – 2.05Vrms (RCA), 0 – 4.1Vrms (XLR)
  • DAC: ES9038Q2M
  • Frequency Response: +/-0.5dB (20Hz - 20kHz, ref.1kHz)
  • Total Harmonic Distortion: <0.001% (1kHz @ 2.05Vrms)
  • Sampling Frequency: 768KHz / 32-bit
  • Signal-to-Noise Ratio (A-Weighted): >116dB (RCA), >120dB (XLR)
  • Output Impedance: 120 Ohms (RCA), 56 Ohms (XLR)

Headphone Amplifier

  • Total Harmonic Distortion (THD): < 0.01% (1kHz, 50mW)
  • Output Impedance: 2.35 Ohms
  • Load Impedance: 20-600 Ohms

General

  • Standby Power Consumption: <0.5W
  • Supplied Accessories: Power Cable, Remote Control, Batteries, User Manual
  • Please Note: No Interconnect Cables supplied. Please ask us about recommendations.
  • Available Finishes: Black or Silver
  • Dimensions (WxHxD): 236 x 98 x 380 mm
  • Weight: 5.3 kg
  • Manufacturer’s Warranty: 1 Year, plus an additional 2 Years if the product is Registered within ninety (90) calendar days from the date of purchase

Note: Features & Specifications Subject To Change Without Notice. E&OE.

Shipping cost is based on weight. Just add products to our quote request form and we will get back to you with a shipping quote and a link to securely checkout online!

We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
