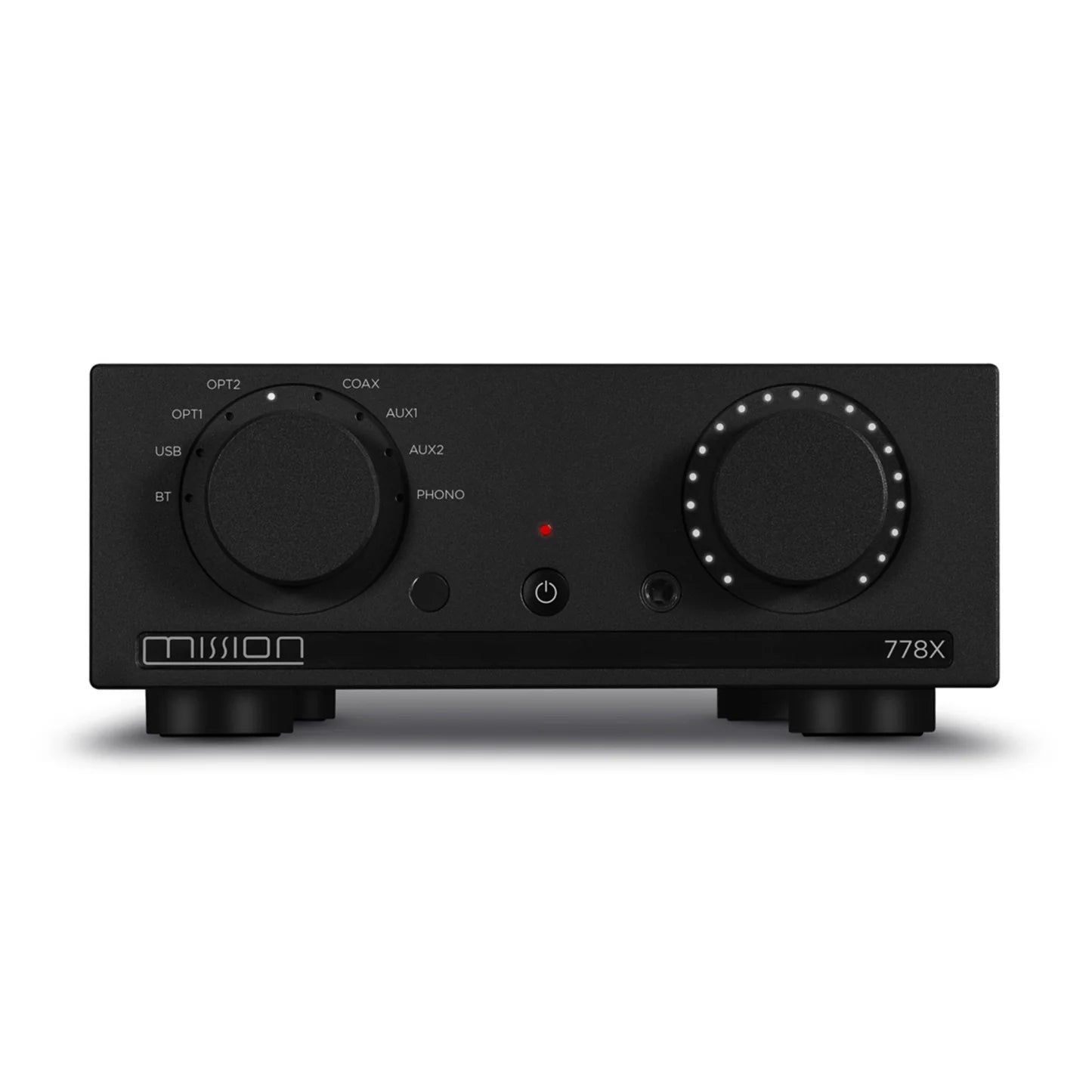

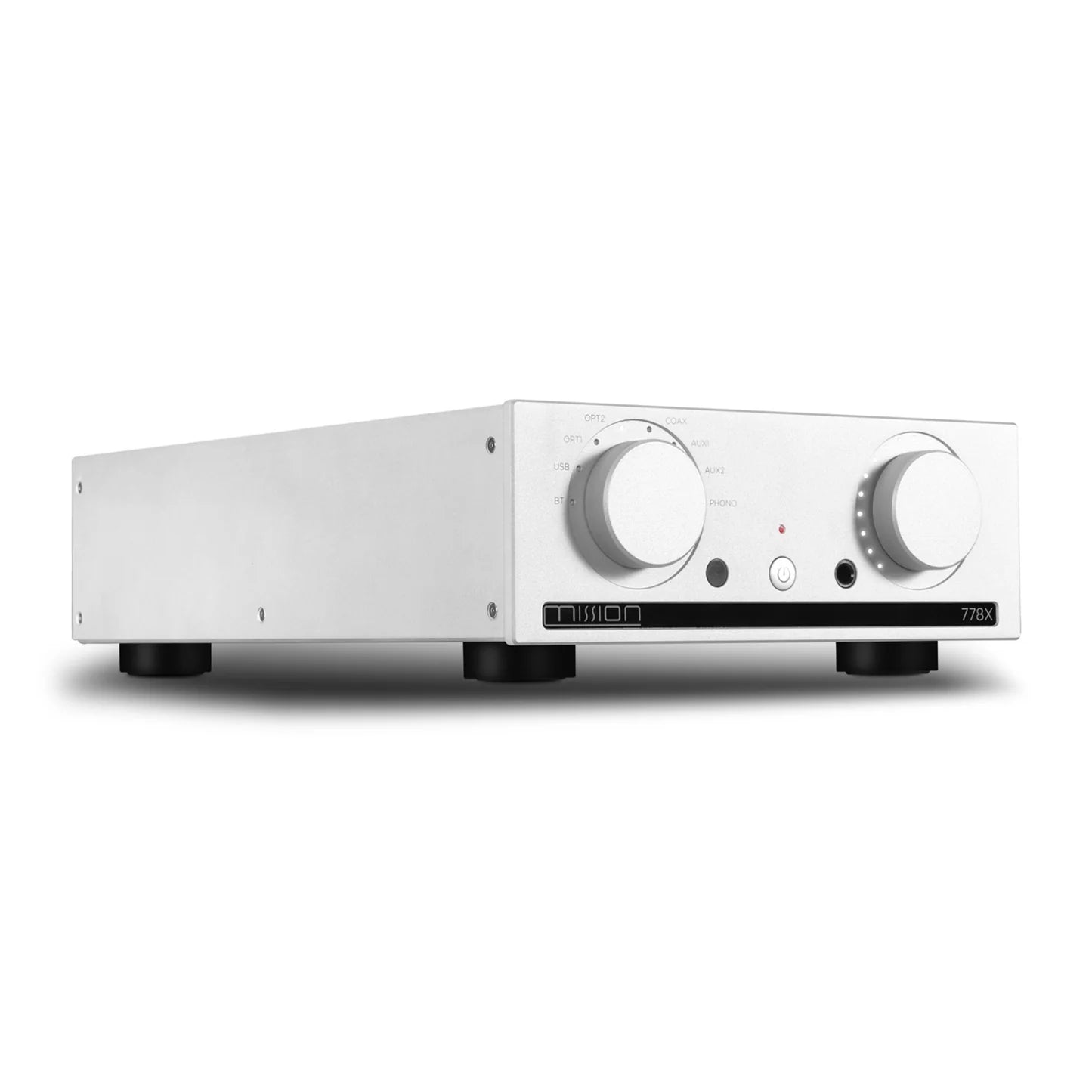

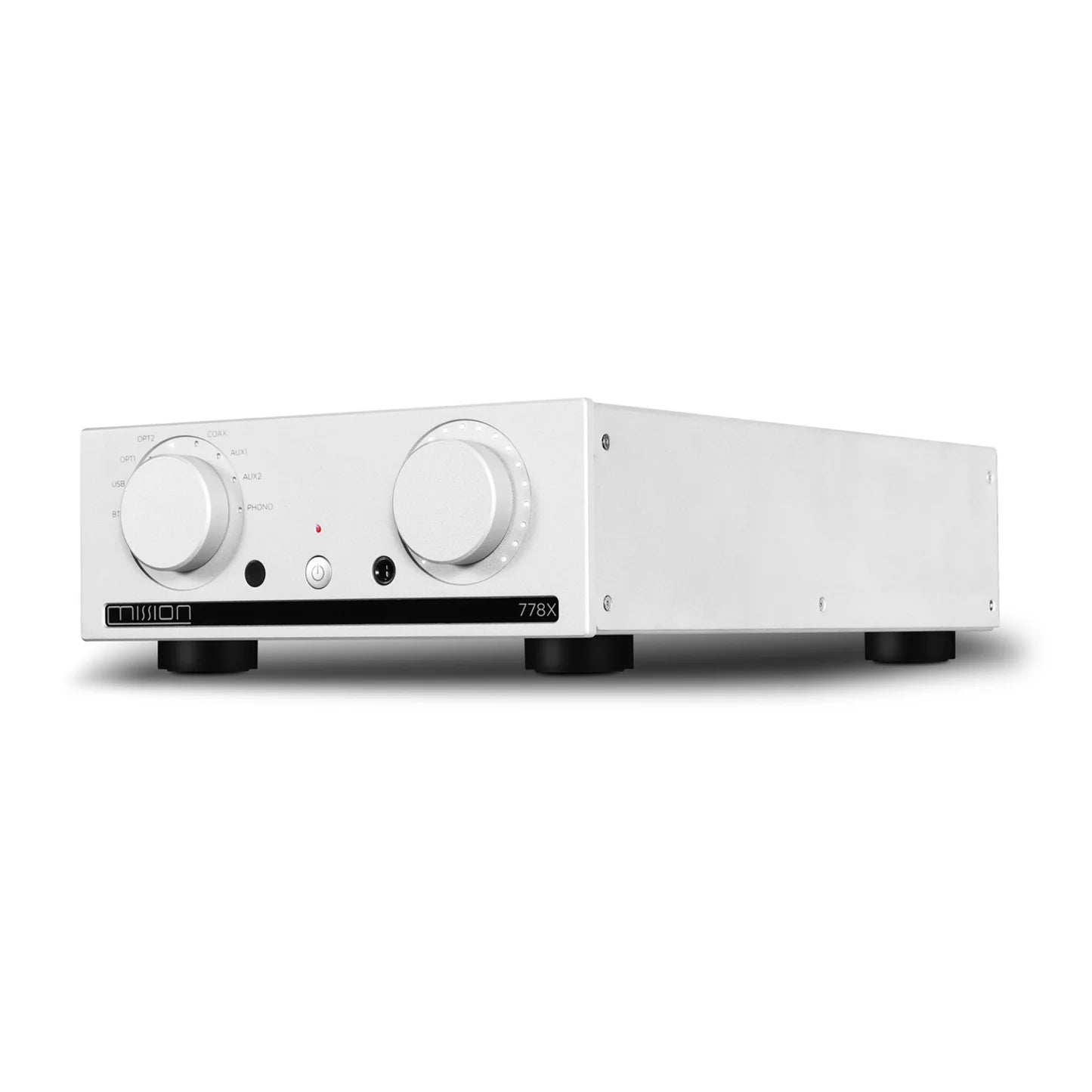

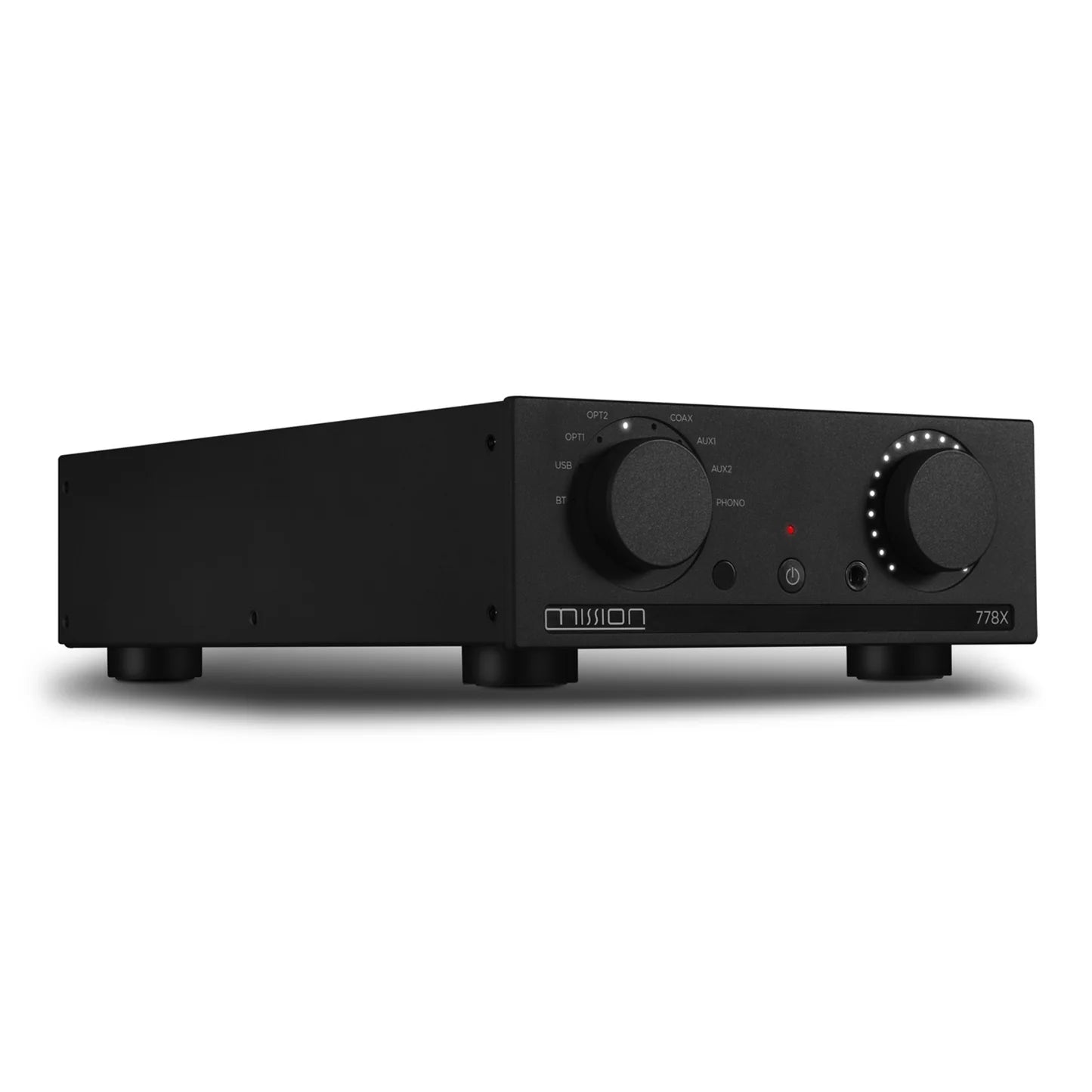

Mission 778X Integrated Amplifier

Translation missing: en.products.product.price.regular_price $1,299.00
Translation missing: en.products.product.price.sale_price $1,299.00 Translation missing: en.products.product.price.regular_price
Translation missing: en.products.product.price.unit_price
Tax included.

Today’s Mission 778X maintains the influence of simplistic operation, large tactile controls, and a multitude of inputs. It’s a compact, ’80s inspired integrated amplifier that is fully equipped to meet the demands of modern music lovers, from vinyl fans to digital streamers. Modern twists, such as LED level indicators and all-encompassing connectivity options, make the 778X a truly contemporary integrated amplifier. Boasting a genuine 65 Watts (@ 4 Ohms) of power via an utterly modern and refined signal path, to standards akin to the exemplary standards to which Mission loudspeakers are developed.



Read the 5 Star What Hi-Fi? Review

Shipping cost is based on weight. Just add products to our quote request form and we will get back to you with a shipping quote and a link to securely checkout online!
Compare Ask a question

Ask a Question

* Required fields

 Size guide Share
Mission 778X Integrated Amplifier

Mission 778X Integrated Amplifier

Product description
Shipping & Returns

Main Features & Specifications

  • All the info on the Mission 778X
  • Design: High Performance Stereo Integrated Amplifier and DAC
  • ESS Sabre32 ES9018K2M Reference Chip
  • Ultra-low Noise Digital Audio File Compatibility (384kHz PCM, DSD256)
  • Bluetooth 5.0 (aptX / AAC) Support
  • Dedicated High-performance, Low-noise MM Phono Stage
  • Headphone Amp with High-speed Output Signal Transition
  • USB Upgrade Support
  • Large Tactile Controls with LED Level Indicators

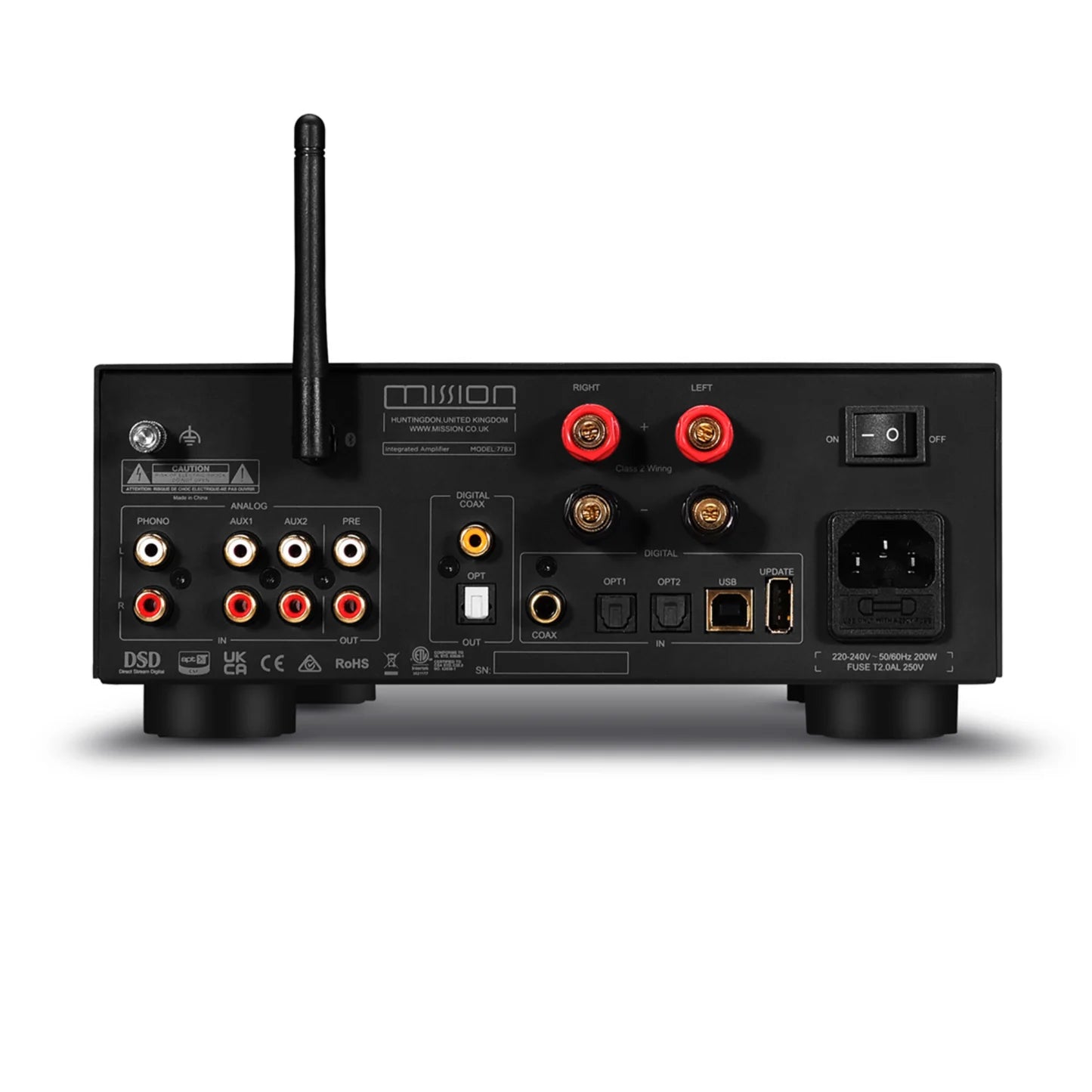

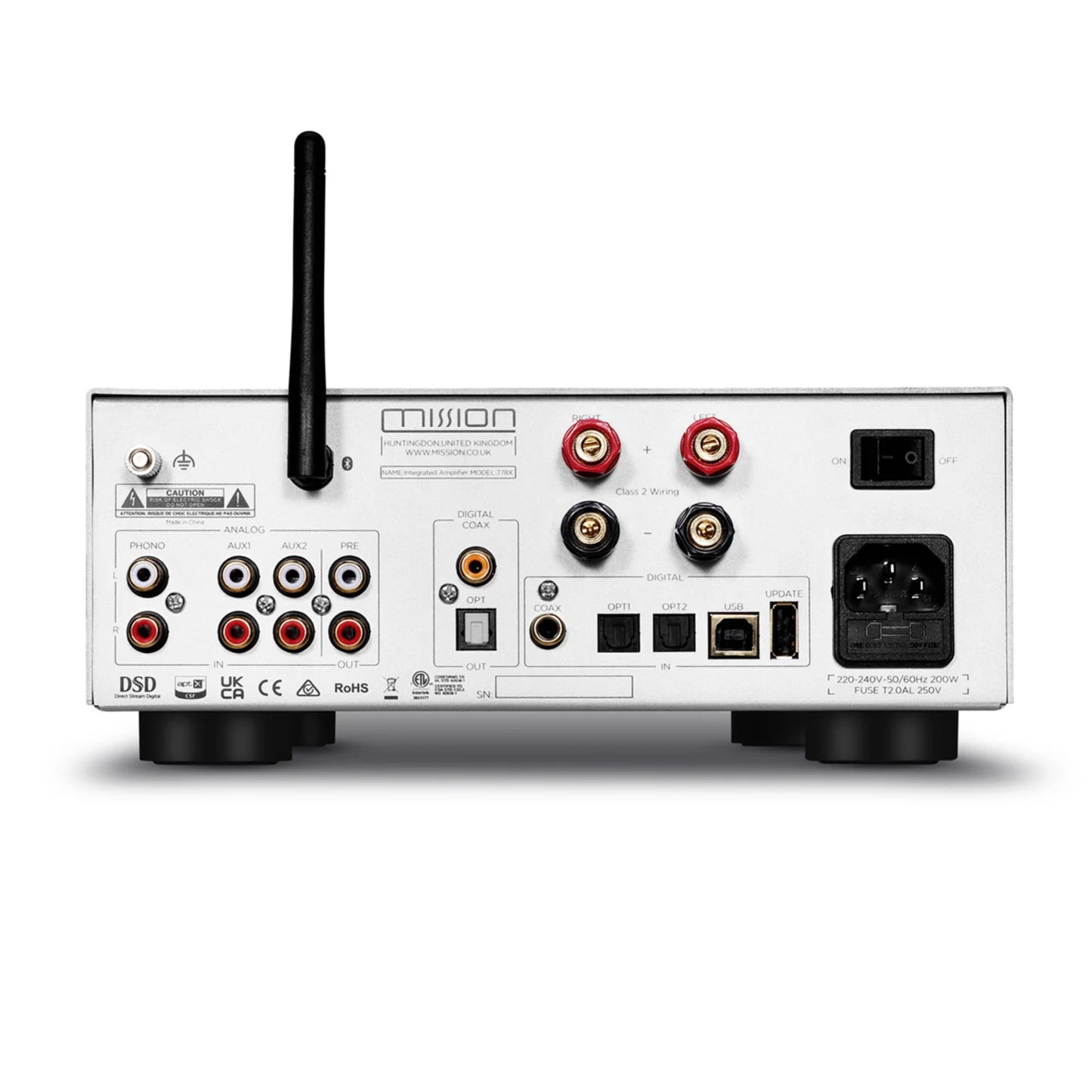

Inputs

  • 1 x Coaxial
  • 2 x Toslink Optical
  • 1 x PC USB
  • 1 x Bluetooth (aptX/AAC)
  • 2 x Analogue RCA
  • 1 x RCA (Phono MM)

Outputs

  • 1 x Coaxial
  • 1 x Toslink Optical
  • 1 x RCA (Pre Out)

Sampling Frequencies

  • Optical / Coaxial: 44.1kHz-192kHz
  • PC USB: PCM 44.1kHz-384kHz / DSD64, DSD128, DSD256

Preamplifier Section

  • Gain (max.): +0dB (Line), +47dB (Phono MM)
  • Input Sensitivity: 540mV (Line, Volume = 0dB), 2.5mV (Phone MM, Volume = 0dB)
  • Input Impedance: 10K (Aux), 47K//100pF (Phono MM)
  • Total Harmonic Distortion (THD): <0.003%
  • Frequency Response (ref. 1kHz): 20Hz-20kHz (±0.1dB)
  • Pre Output Level: 2.1Vrms (max.)
  • Pre Output SNR: >110dB (A-weighted)

DAC

  • Digital to Analogue Converter: ESS Sabre32 ES9018K2M
  • Resolution: 32-bit
  • Sampling Frequency: Optical/Coaxial: 192kHz, USB: PCM 384kHz / 11.2896MHz (DSD256)
  • Total Harmonic Distortion (THD): < 0.001% (1kHz @ 0dBFS)
  • Output level (0dBFS, 1kHz): 2.1Vrms

Power Amplifier Section

  • Gain: +31dB
  • Rated Power Output: 2 x 45W (@ 8 Ohms), 2 x 65W (@ 4 Ohms)
  • Frequency Response (ref. 1kHz): 20Hz-20kHz (± 0.5dB)
  • Total Harmonic Distortion (THD): <0.005% (30W / 8 Ohms)
  • Input Sensitivity: 540mV (RCA Aux In), 2.5mV (Phono MM)
  • Signal-to-Noise Ratio (SNR): >108dB (ref. 45W, A-weighted)
  • Crosstalk @1K: >80dB (ref.1W)
  • Standby Power Consumption: <0.5W

Headphone Amplifier

  • Total Harmonic Distortion (THD): < 0.01% (1kHz, 50mW)
  • Output Impedance: 4.7 Ohms
  • Load impedance: 20-600 Ohms

General

  • Supplied Accessories: Power Cable, Remote Control, Bluetooth Antenna, User Manual
  • Please Note: The Remote Control requires 1 x CR2025 type Button Battery. Due to international shipping and courier regulations with Lithium-Ion batteries, the remote control battery is NOT included in the box.
  • Available Finishes: Black or Silver
  • Dimensions (WxHxD): 236 x 98 x 380.6mm
  • Weight: 6.3
  • Manufacturer’s Warranty: 1 Year, plus an additional 2 Years if the product is Registered within ninety (90) calendar days from the date of purchase

Note: Features & Specifications Subject To Change Without Notice. E&OE.
