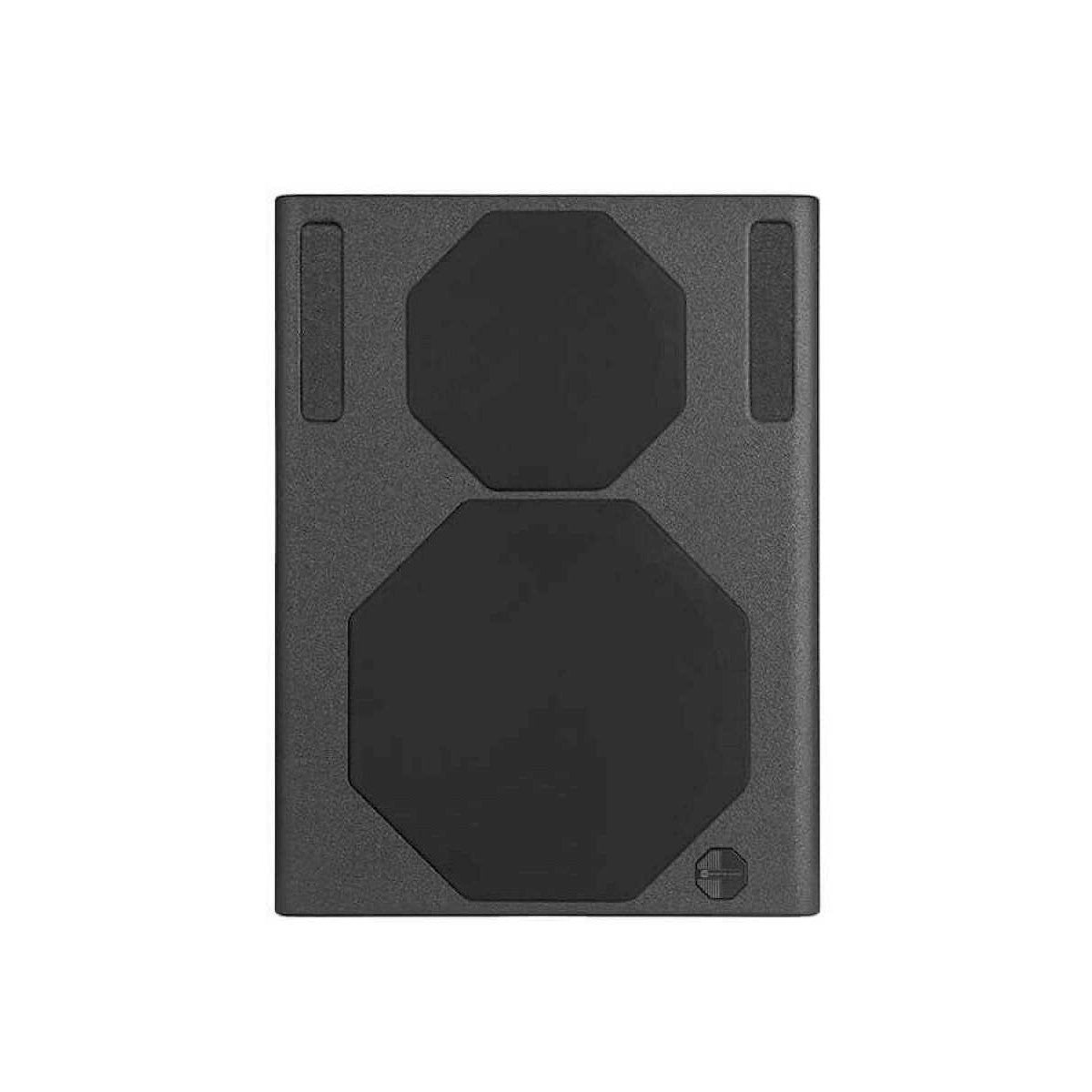

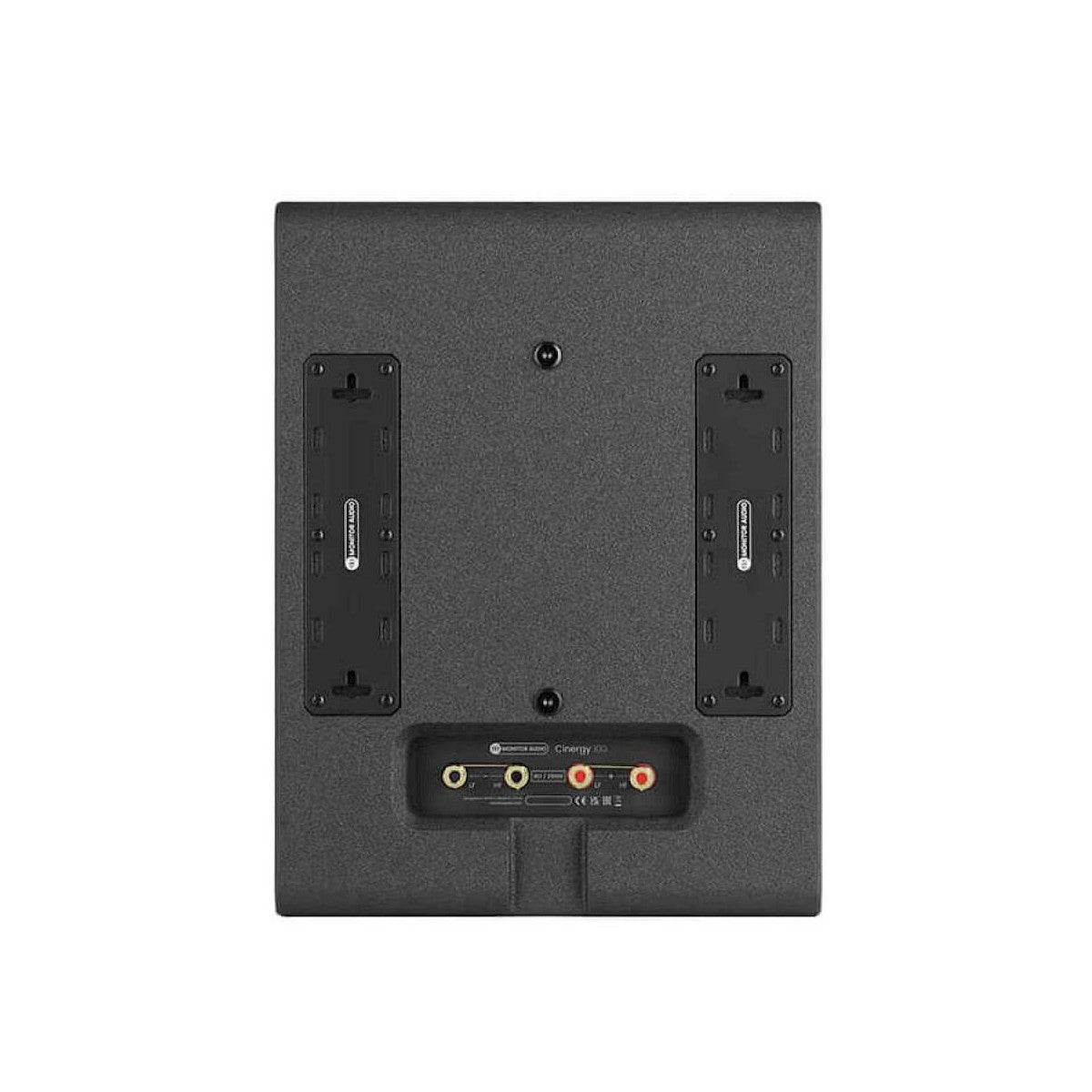

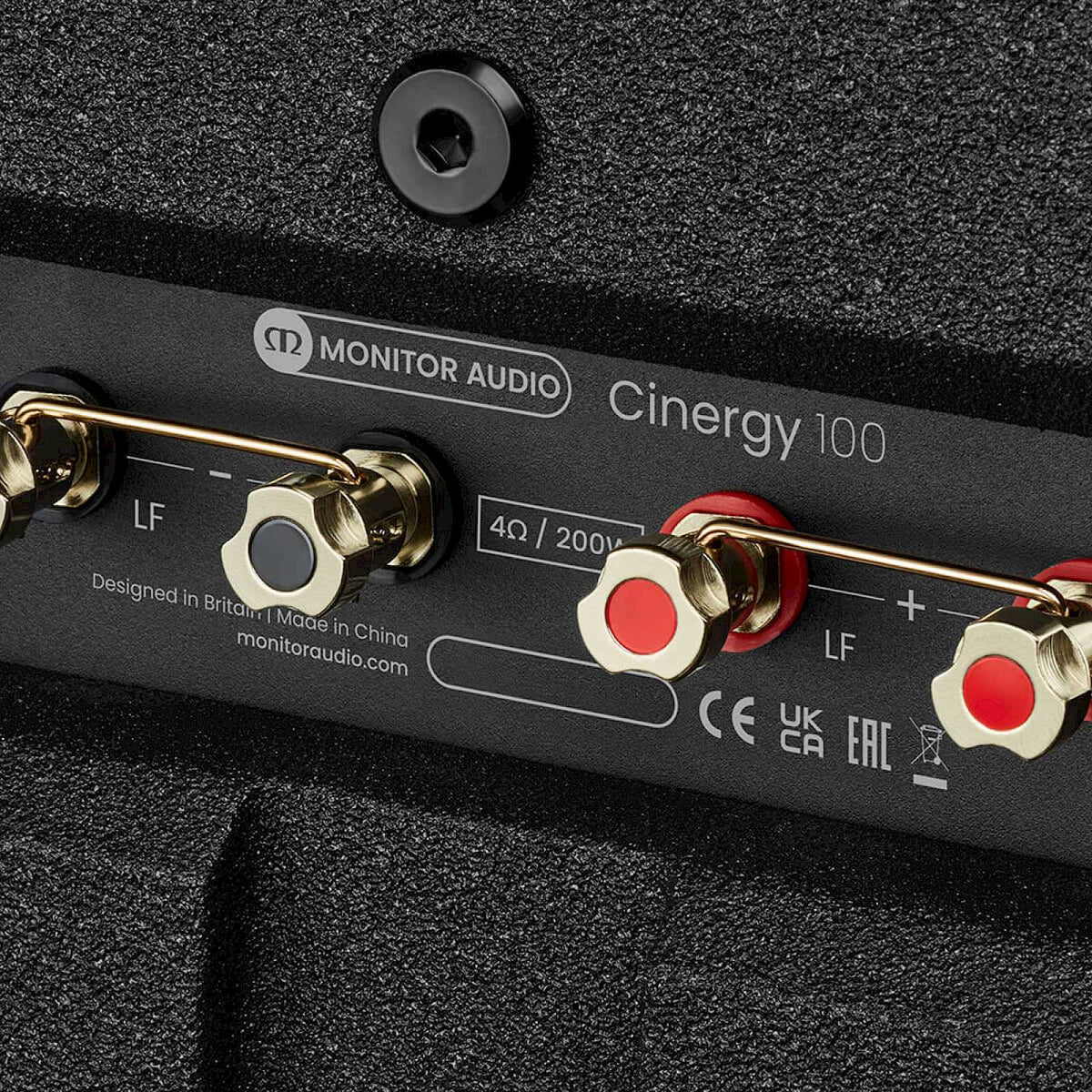

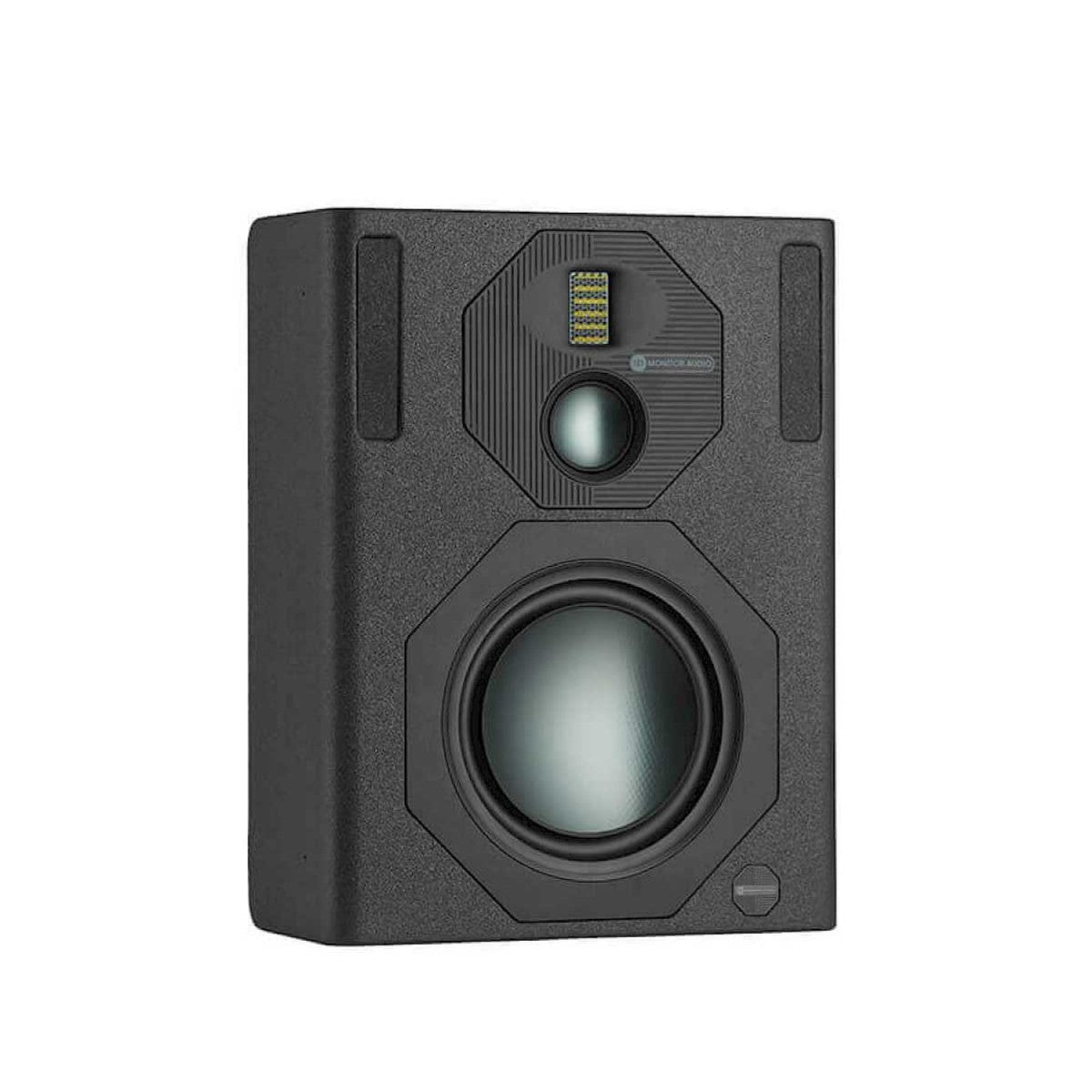

Monitor Audio Cinergy 100 In-Wall / On-Wall Loudspeaker

Main Features & Specifications

• All the info on the Monitor Audio Cinergy 100
• Design: 3-Way Home Cinema Speaker – Sold Individually
• Can be used as an In-Wall or On-Wall Loudspeaker
• Designed to be used with other Cinergy speakers
  • Cinergy 300 Floorstanding / In-Wall Loudspeaker
  • Cinergy 200 In-Wall / On-Wall Loudspeaker
  • Cinergy Sub15 Floorstanding / In-Wall Passive Subwoofer
• Unique isolation options
• Rotatable mid-tweeter array

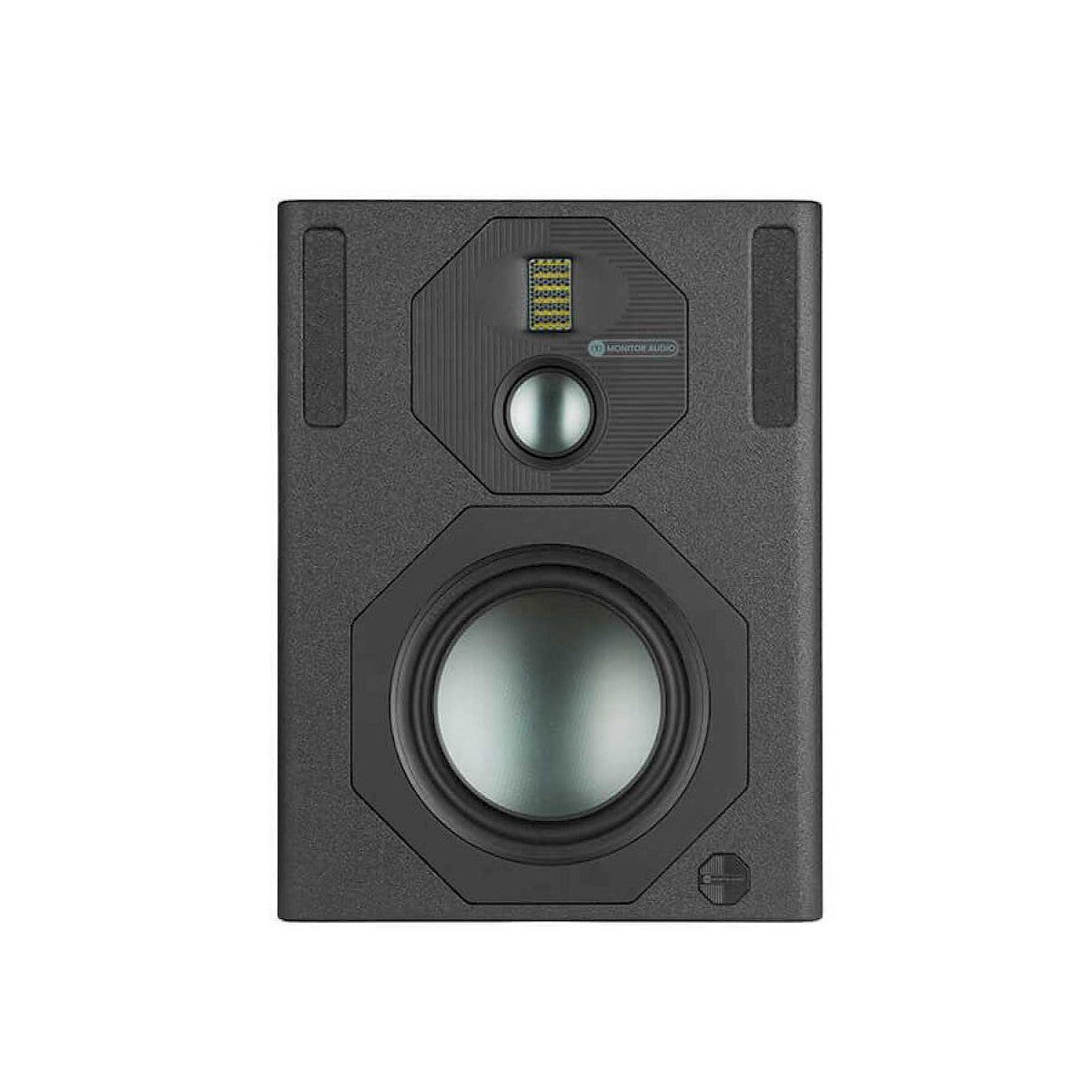

• Removable port bungs
• Suited to custom-built mounting behind an acoustically transparent screen

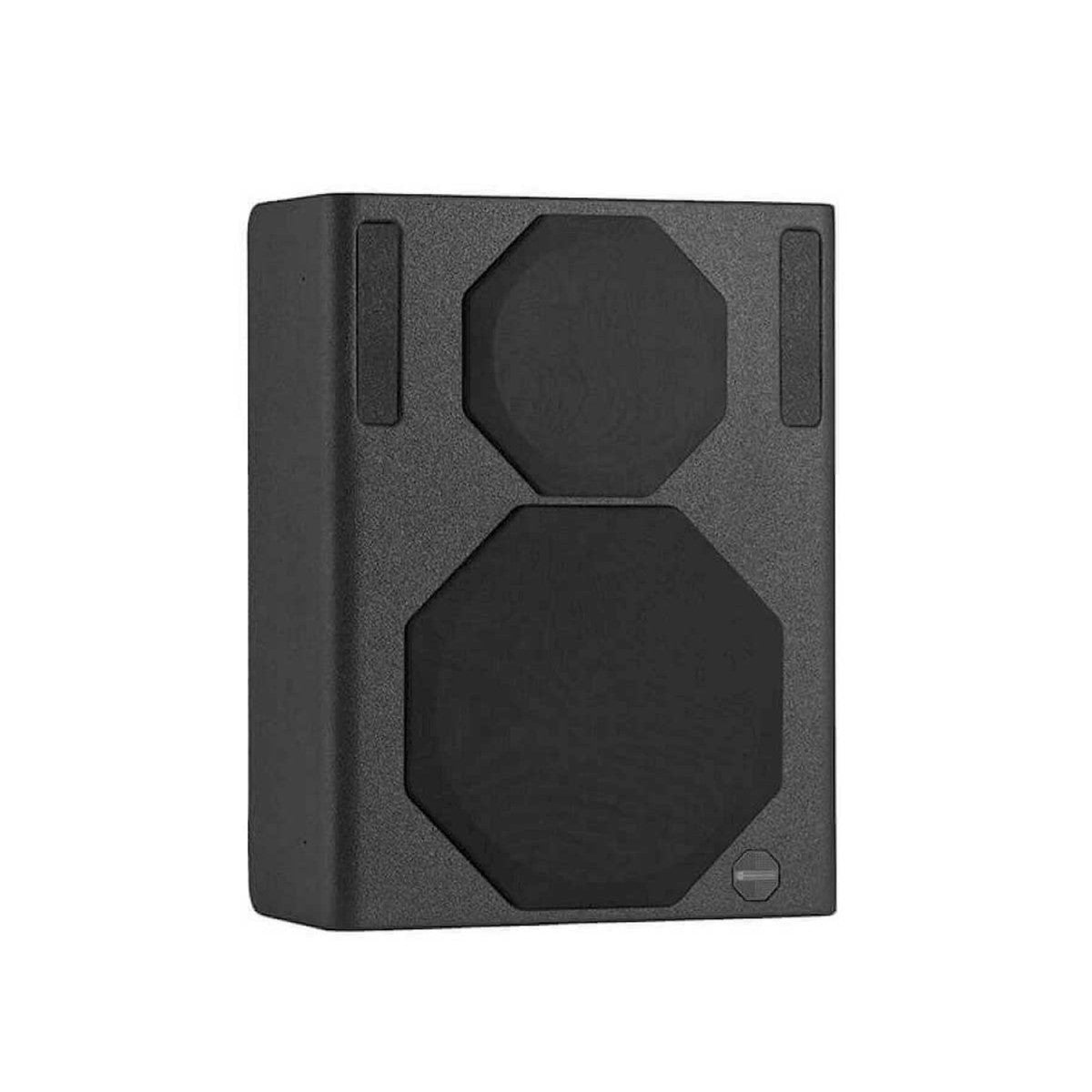

• Magnetic Grilles
• THX® Certified Ultra (THX is the gold standard for audio and visual fidelity: a globally recognised mark assuring you that Cinergy will deliver the ultimate home cinema experience. It’s not simply a set of measurements done on a computer or in a lab. THX certification is done using the dynamics of real-world listening, so you can have the utmost confidence in the equipment you install.)

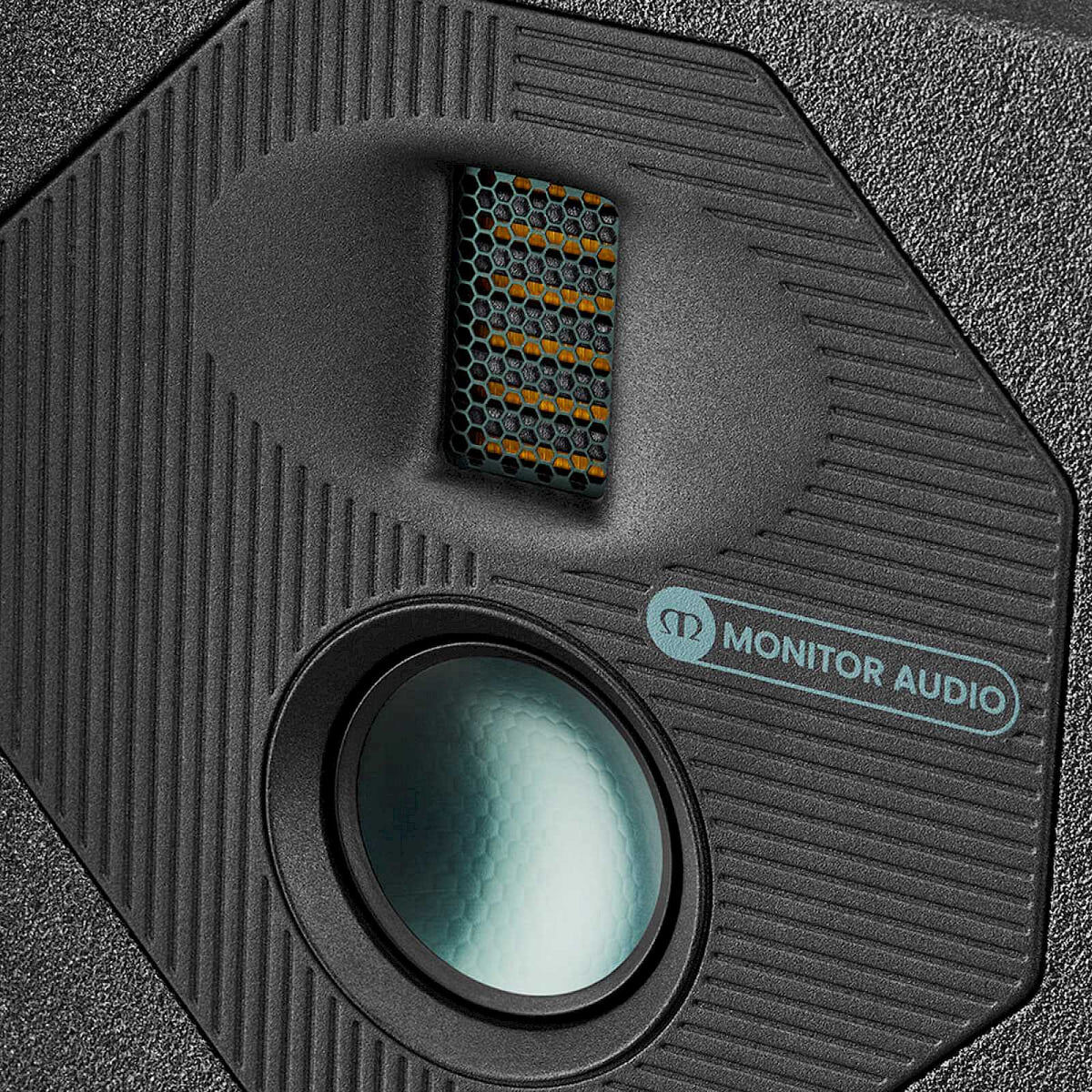

• High Frequencies: 1 x MPD Transducer (The precision specification of the Micro Pleated Diaphragm technology is designed to produce accurate, lifelike sound without any distortion)
• Midrange Frequencies: 1 x 2.5" (63 mm) C-CAM Drivers (Ceramic-Coated Aluminium/ Magnesium cones have a much higher resistance to bending stress and therefore exhibit much greater fidelity over their entire operating range producing a smooth transition of frequencies and a sense of realism and cohesion in the soundstage)
• Bass Frequencies: 1 x 8" (203 mm) RDT Drivers (The Rigid Diaphragm Technology is a ‘sandwich’ of ultra-thin, low-mass skins bonded to a honeycomb Nomex® core, making these bass drivers both exceptionally strong and lightweight)
• Sensitivity (2.83 Vrms @ 1 M): 89 dB
• Maximum Linear SPL (@1m, free space): Continuous 103 dB, Peak 116 dB (Band limited with Low pass at 200 Hz, should only be used with IA800-2C and the correct speaker profile)
• Power Handling (RMS): Continuous 200 W, Peak 800 W
• Nominal Impedance: 4 Ohms
• Minimum Impedance (20 Hz - 20 kHz): 3.8 Ohms
• Recommended Low Frequency Crossover Frequency: 80 - 100 Hz (High Pass)
• Recommended Amp Requirements (RMS): 100 - 800 W (Monitor Audio IA750-2 or IA750-4)
• Bass Alignment: Ported (When used in an In-Wall or On-Wall configuration it is recommended to use the fitted port bungs to control bass output. This will effectively make the product a sealed box.)
• Port Tuning Frequency: 67 Hz
• LF Extension, In Wall, With Port Bungs (- 6dB): 48 Hz
• LF Extension, In Free Space, No Port Bungs (- 6dB): 65 Hz
• HF Extension (-6dB): >30 kHz
• External Dimensions (WxHxD): 350 x 460 x 160 mm (174.1 mm Deep with Grille)
• Weight: 18.4 kg
• Manufacturer’s Warranty: 5 Years

Note: Features & Specifications Subject To Change Without Notice. E&OE.
