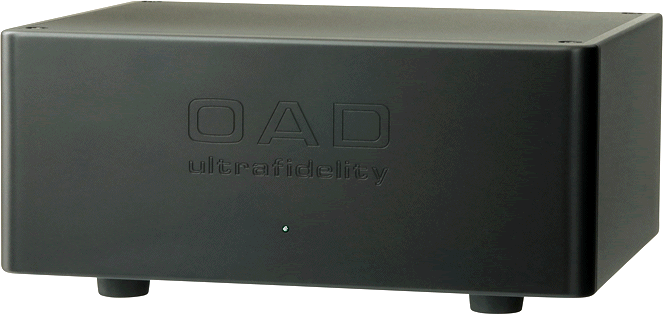

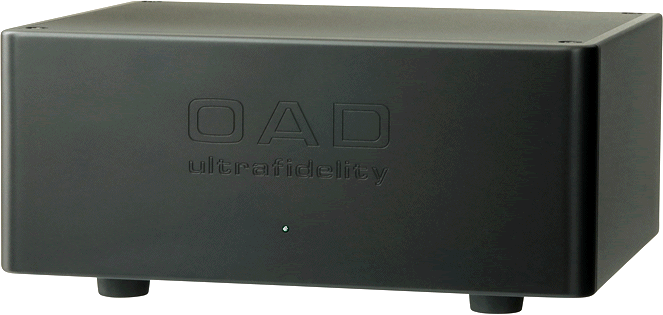

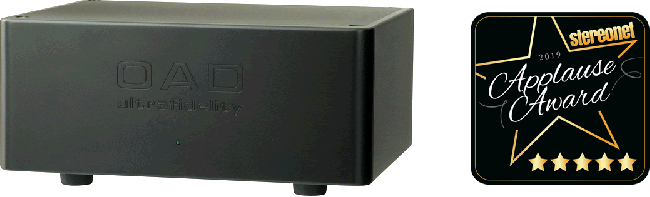

OAD Ultrafidelity UP1 Phono stage
An Australian made high class phono stage with almost infinite adjustability. This phono stage is a great value option for even the most peculiar Moving Coil Cartridges.
Not only designed in Melbourne, this phono stage is built in Melbourne. John De Sensi has the chasis made by a company that makes precision tooling here in Melbourne.
John has been making electronics for decades. Previously under the Music Labs branding. He's gotten better over time as well.

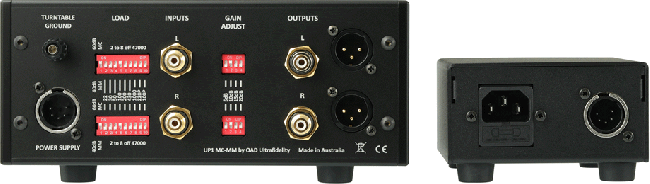

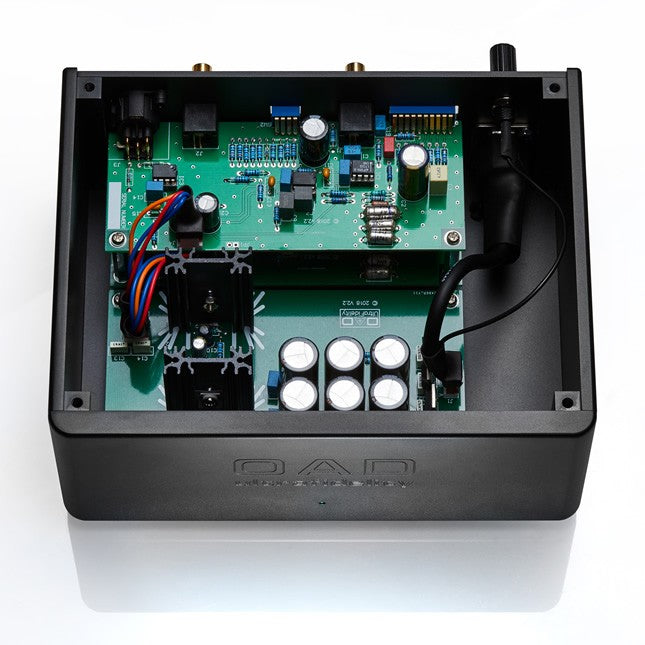

Special details about this Phono stage design are the separate power supply. This keeps the bulky and noisy power supply away from the sensitive parts of the circuit. Also separate circuit boards for each channel. Dip switches on the back of the unit allow for an incredible amount of gain and impedance adjustability.
This is a seriously classy phono stage and great value at this price point.

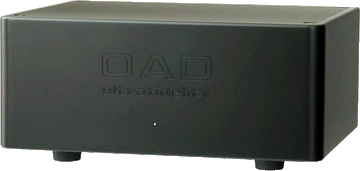

OAD Ultrafidelity UP1 Phono stage
Input: RCA
Output: 1 pair Unbalanced RCA (single ended) , 1 pair Balanced XLR
Input impedance:22 Ohm – 47 kOhm (selectable in 8 steps)
Output impedance: 50 ohm
Input capacitance (without additional switched capacitance): 100 pF
Input sensitivity: 200uV – 20 mV
Gain: 40 – 80 dB (2 VRMS output at 1 kHz)
THD 0.005 % (1 kHz)
MM cartridge: >107 dB A-weighted, input shorted
MC cartridge: > 85 dB A-weighted, input shorted
RIAA linearity: +/- 0.2 dB (20 Hz – 20 kHz)
Nominal output: 2 VRMS
Maximum output: 10.5 VRMS
Power consumption: 5 W
Dimensions: Preamplifier W 210 x D 183 x H 95 mm, 2.3 kg
Power Supply: W 114 x D 130 x H 63 mm, 1.25 kg
Shipping Weight: 5kg
