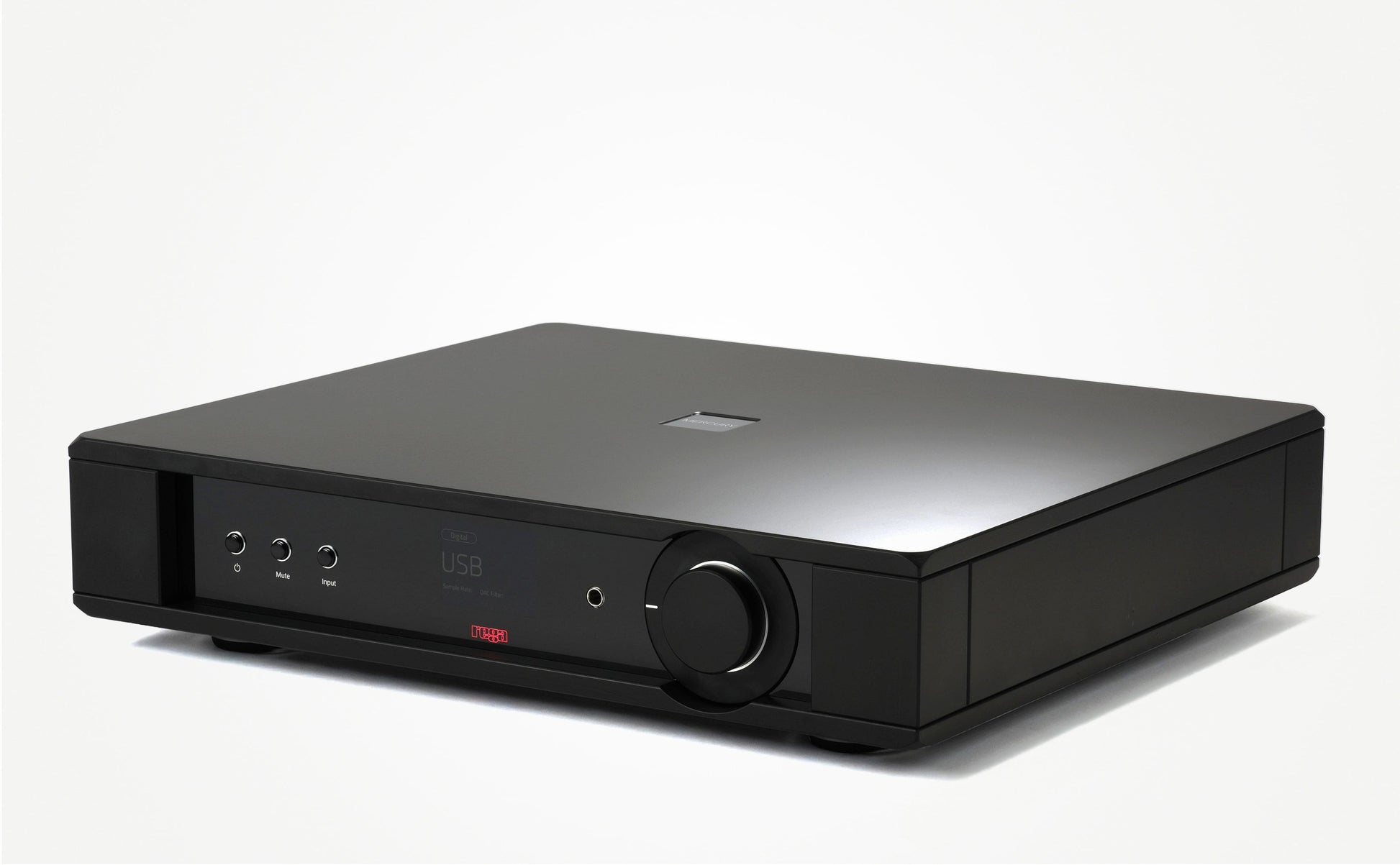

Rega Mercury Reference Preamplifier/DAC

Translation missing: en.products.product.price.regular_price $14,500.00
Translation missing: en.products.product.price.sale_price $14,500.00 Translation missing: en.products.product.price.regular_price
Translation missing: en.products.product.price.unit_price
Tax included.

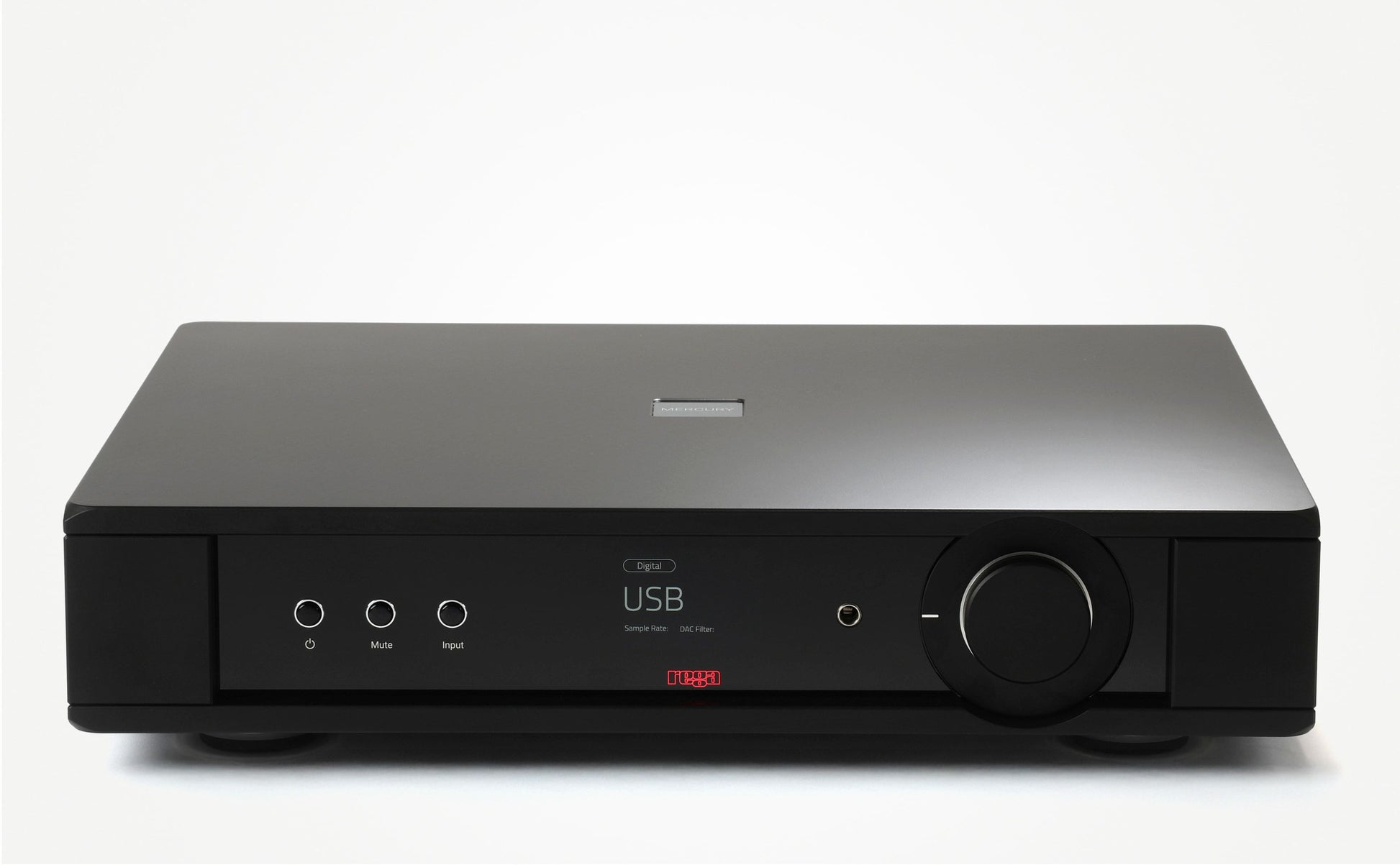

The main development objective for the Mercury was to create a no compromise audio preamplifier. Mercury is hand crafted to reveal the true potential of your hi-fi system thanks to an ultra-low noise floor delivering exceptional dynamic range. The Mercury pre-amplifier, like the Solis, is the culmination of almost four decades of Rega electronics engineering experience in solid-state amplifier development. Capturing the detail in a quiet performance is key to delivering an engaging sound. A well-engineered “clean” pre-amplifier preserves all those subtle details instead of masking them with unwanted noise. This fully featured reference pre-amplifier offers great flexibility and usability with the convenience of a high-performance DAC, discrete headphone amplifier, and a full colour IPS display.

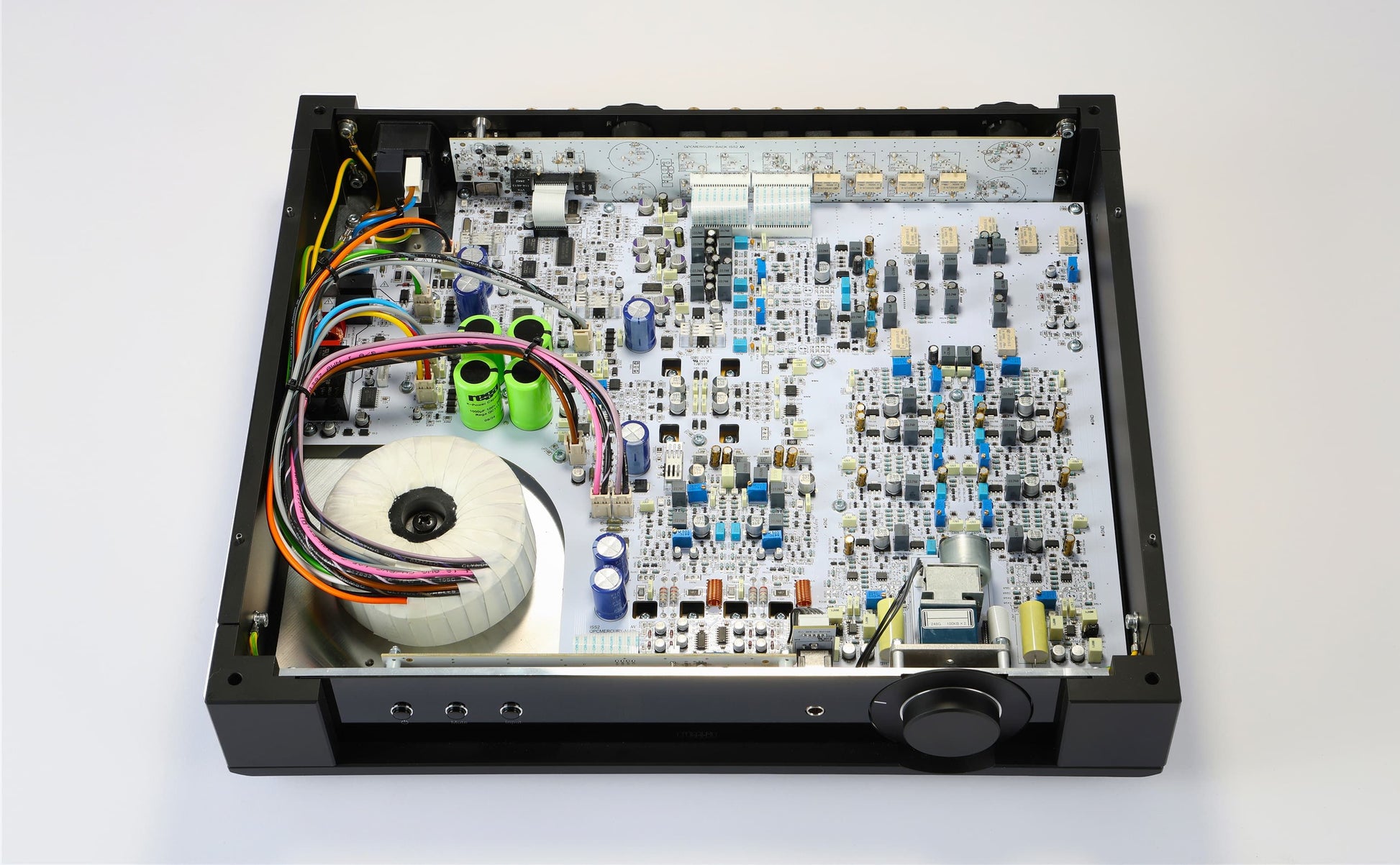

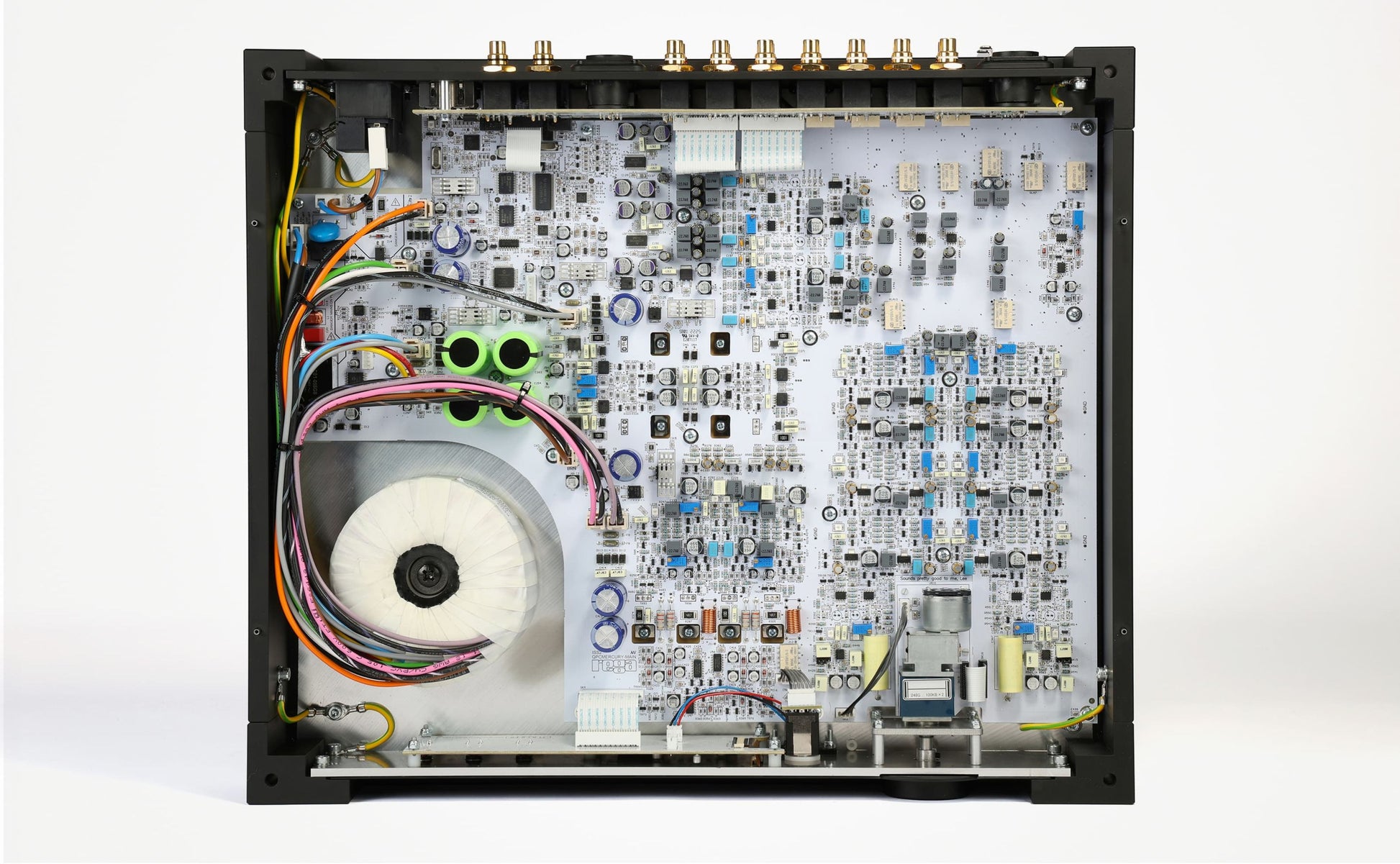

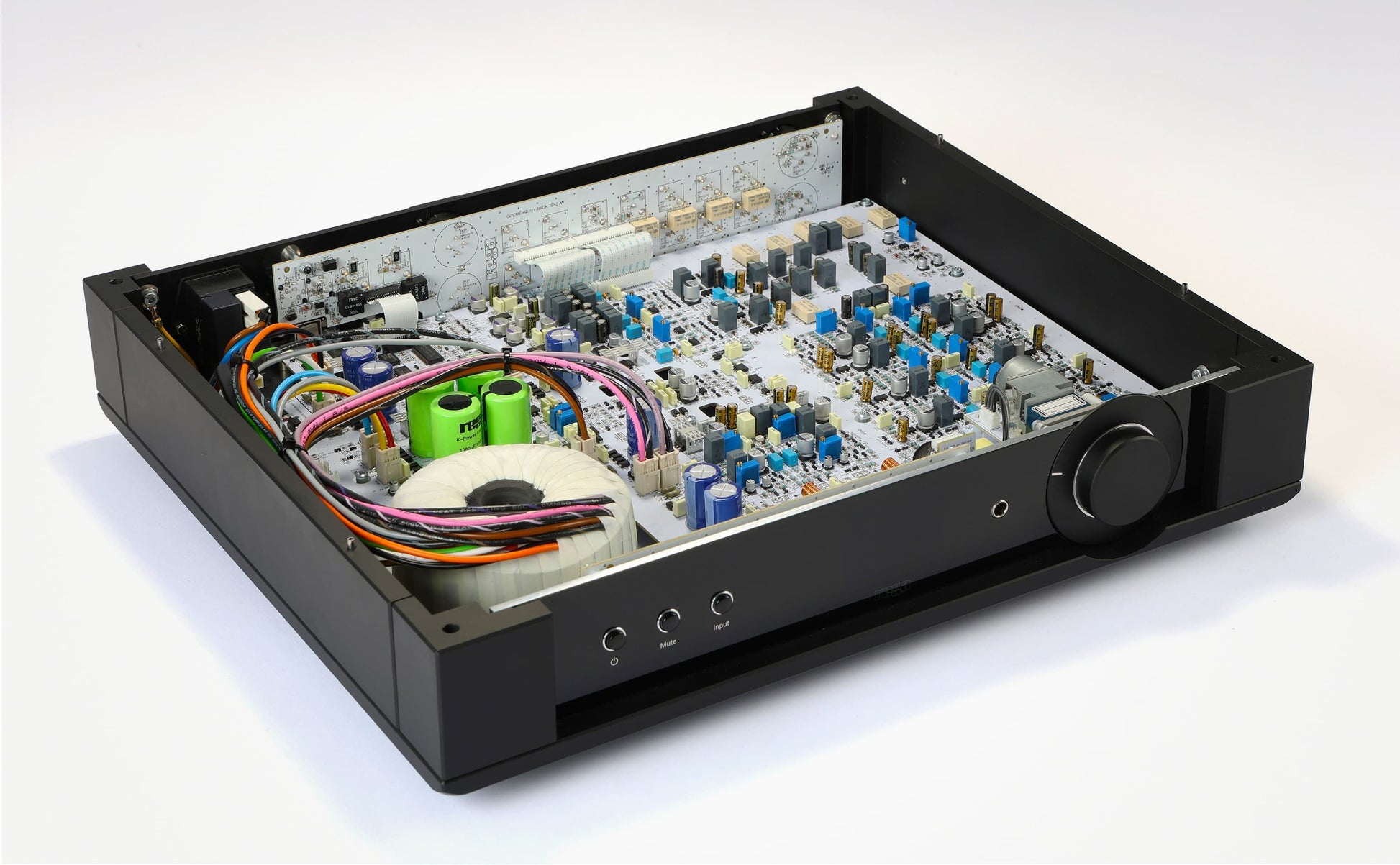

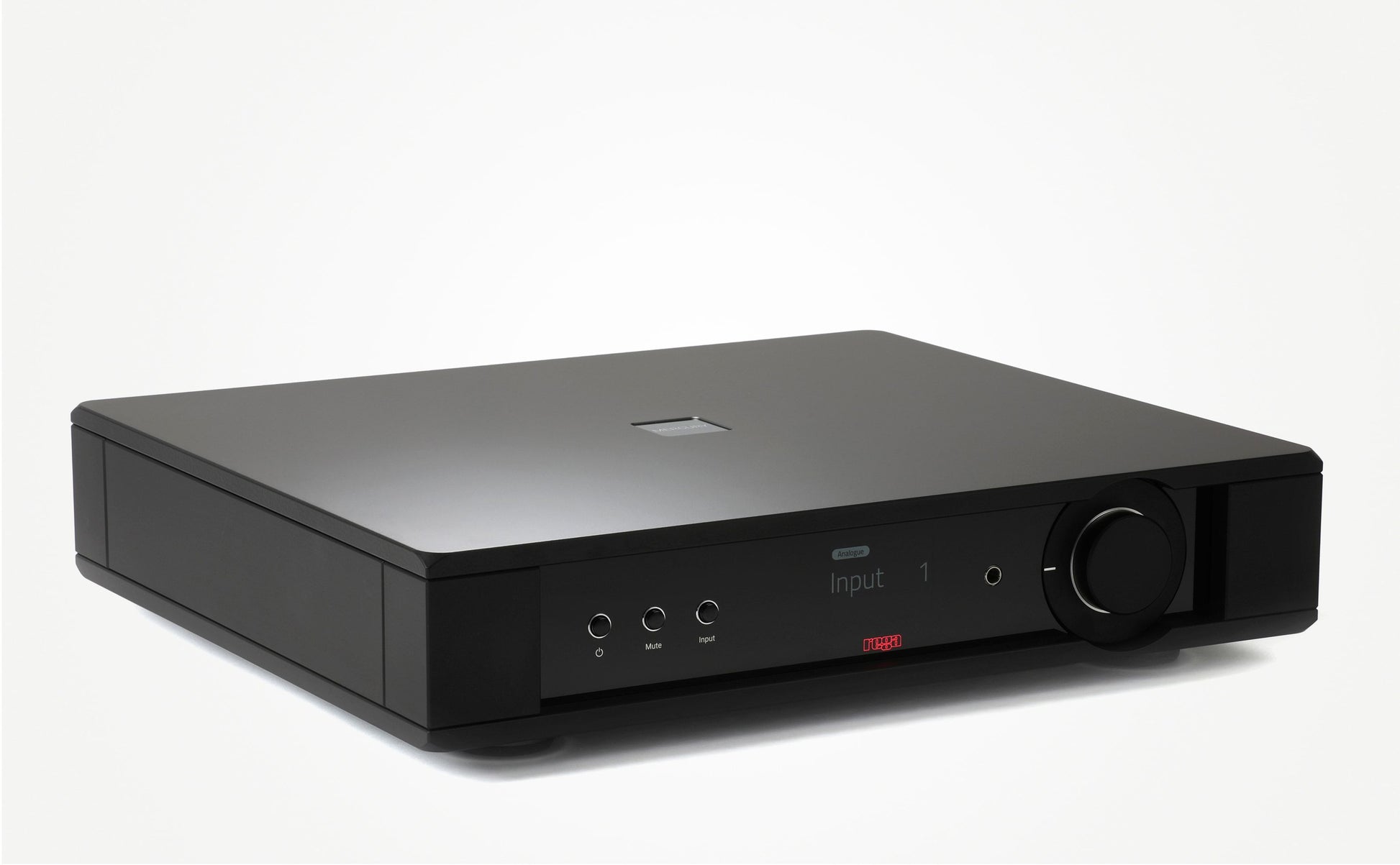

Mercury is the smallest planet in our solar system. The Rega Mercury by contrast, is the largest (by component count) and most complex electronic product Rega has ever created. The origin of this circuit extends as far back as the first Rega Elicit amplifier circa 1990. The Mercury is housed in a custom-designed, Rega CNC machined, aluminium case offering unrivalled performance, build quality and styling.



On Demonstration Instore

Shipping cost is based on weight. Just add products to our quote request form and we will get back to you with a shipping quote and a link to securely checkout online!
Compare Ask a question

Ask a Question

* Required fields

 Size guide Share
Rega Mercury Reference Preamplifier/DAC

Rega Mercury Reference Preamplifier/DAC

Translation missing: en.products.product.price.regular_price $14,500.00
Translation missing: en.products.product.price.sale_price $14,500.00 Translation missing: en.products.product.price.regular_price
Translation missing: en.products.product.price.unit_price
Product description
Shipping & Returns

Main Features & Specifications

  • All the info on the Rega Mercury
  • Design: Reference Preamplifier/DAC

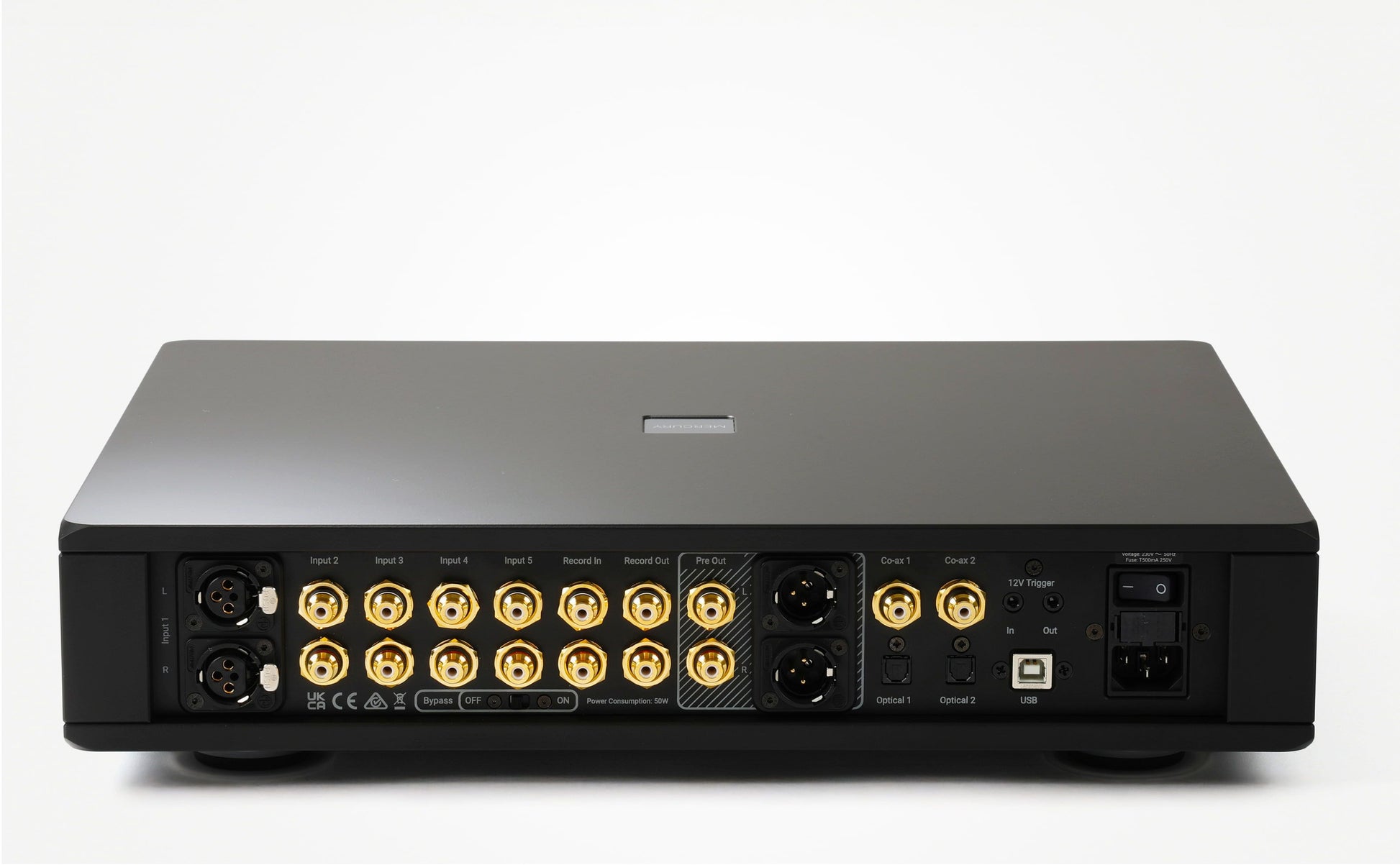

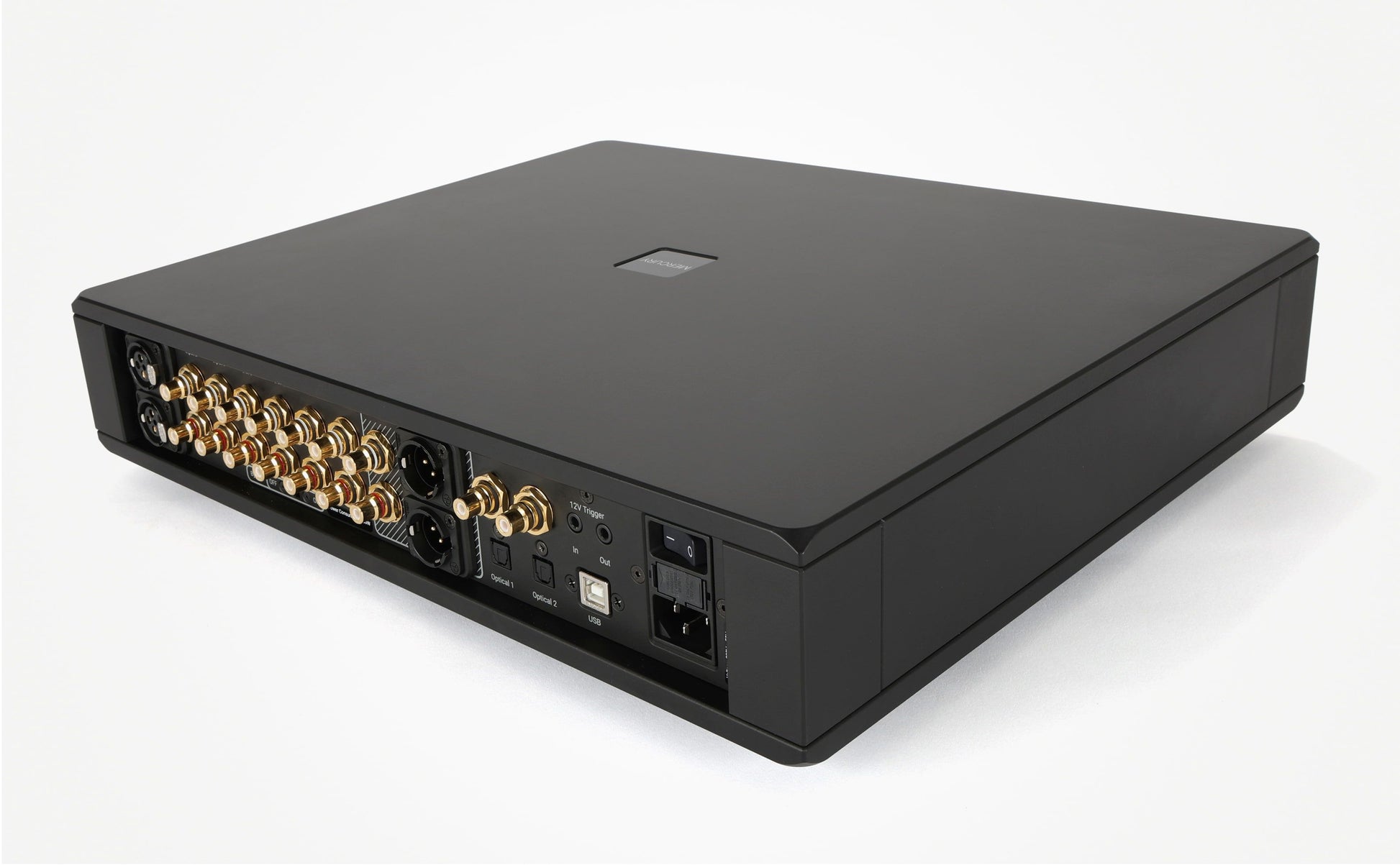

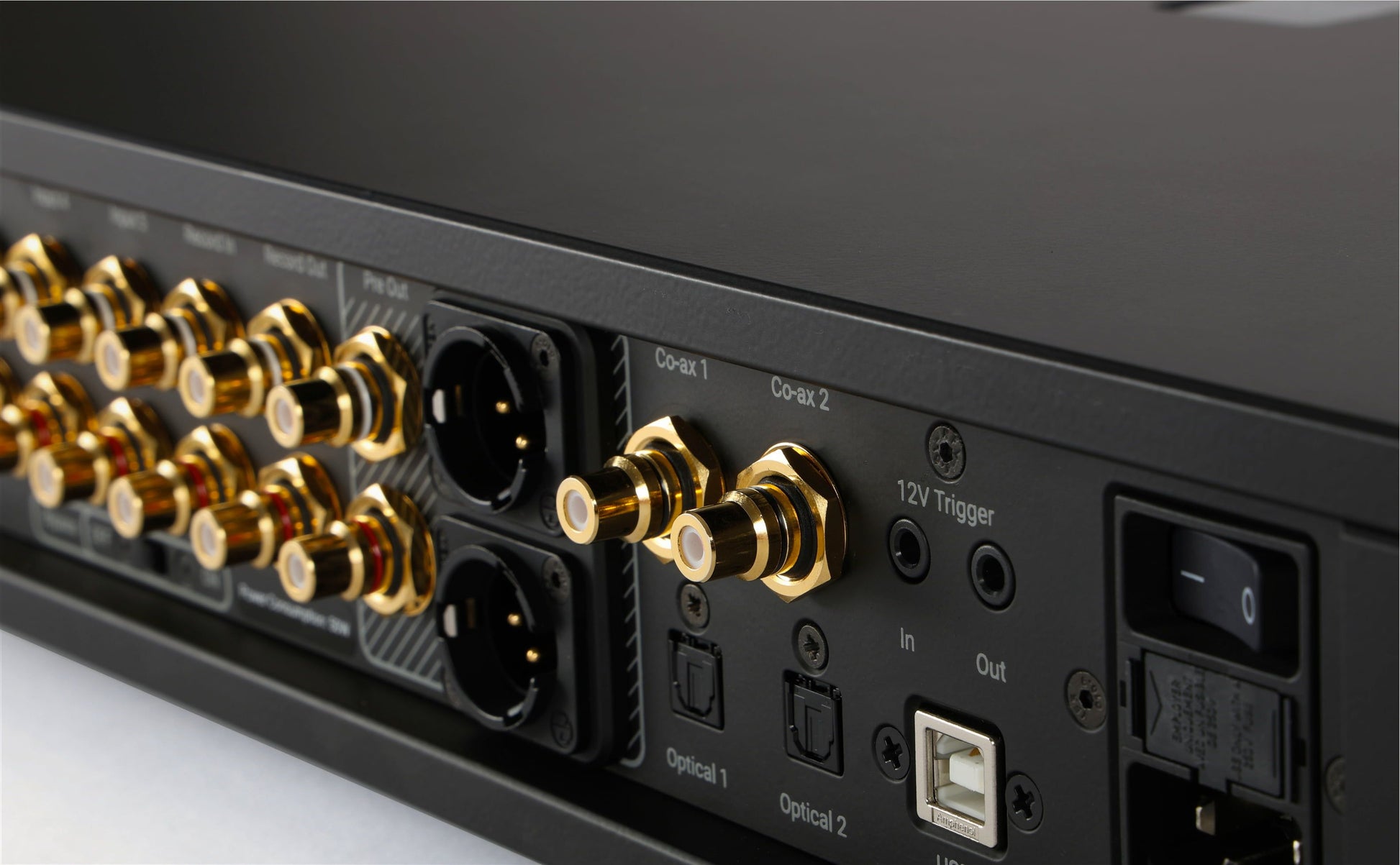

Inputs

  • Balanced XLR Line In (Input 1): 25V max (0dB gain) / 15kΩ
  • Unbalanced RCA Line In (Input 2-5 and Record In): 12.5V max (0dB gain) / minimum 20kΩ (max gain)
  • S/PDIF Coaxial and Optical: 16-24 bit @ 32/44.1/48/88.2/96/176.4/192kHz
  • USB: 16-32 bit @ 44.1/48/88.2/96/176.4/192kHz PCM or DSD64 (DoP), Asynchronous, Power Consumption 0W (<0.5mA)

Outputs

  • Balanced XLR Pre Out: Max gain 11.5dB (Balanced In) or 17.5dB (Unbalanced In) / 47Ω
  • Unbalanced RCA Pre Out: Max gain 11.5dB / 47Ω
  • Sensitivity: Input of 220mV Unbalanced/440mV Balanced produces output of 820mV Unbalanced/1.6V Balanced at max gain
  • Record Out: Gain 0dB / 100Ω

Preamplifier

  • THD+N: Typically 0.001% @ 1kHz 2V Unbalanced or 4V Balanced 0dB gain
  • Frequency Response: 8Hz (-0.5dB point) to 28kHz (-0.5dB point) at 0dB gain Balanced Input/Output

Headphone Amplifier

  • Max Level 33Ω: 9V / 2.5W @ 0.1% THD+N (230V/120V)
  • Max Level 240Ω: 10.85V / 0.5W @ 0.1% THD+N (230V/120V)
  • THD+N: Typically 0.0035% @ 1kHz 2V into 240Ω or 33Ω
  • Frequency Response: 12Hz (-0.5dB point) to 28kHz (-0.5dB point) at max gain

DAC

  • THD+N: Typically 0.0045% @ 1kHz 0dBFS 2V Pre Out

Power

  • Power Consumption: 50W
  • Power Consumption (Standby): 0.4W (activated automatically if no signal present after 20 minutes)

General

  • Input 5 can be configured as a Home Theatre Bypass

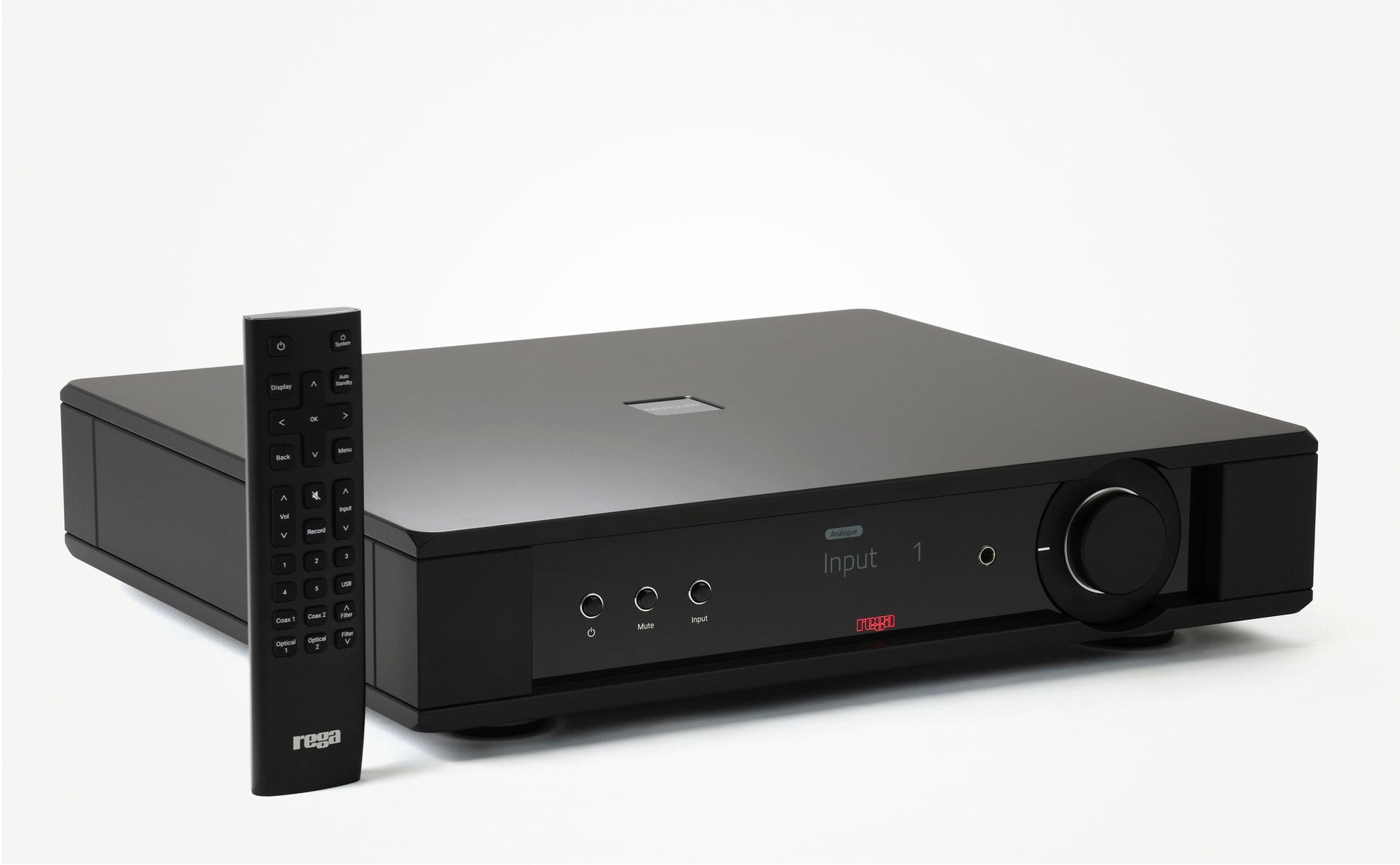

  • Included Accessories: Orbit Remote Control, 2 x AAA Batteries, Screwdriver (for Orbit Remote batteries), Reference Mains Cable, 2 x Trigger Cables, Couple 3 Interconnect
  • Finish: Black
  • Dimensions (WxHxD): 435 x 97 x 380 mm
  • Weight: 14 kg
  • Manufacturer’s Warranty: 3 Years

Note: Features & Specifications Subject To Change Without Notice. E&OE.
