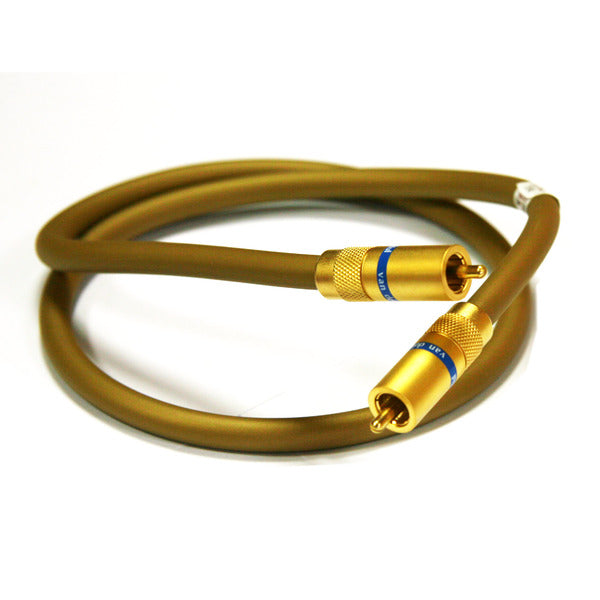

Van Den Hul the MC-Digi-Coupler 75ohm Digital cable

The DIGI-COUPLER 75 Ohm has been specially designed bearing the highest possible transmission quality of 75 Ohm impedance level SPDIF consumer format digital audio in mind, and is aimed at the critical audiophile as well as the professional.

The DIGI-COUPLER 75 Ohm’s special design covers all aspects required for a flawless and reliable transmission of SPDIF digital audio at short range as well as across large studio distances and allows for notable improvements in your audio quality.
The cable’s strict HF design likewise benefits the transport of Video and HF signals well into the GigaHertz range.

Features:

• The DIGI-COUPLER 75 Ohm features a very constant and precise 75 Ohm impedance: 75 Ohm ± 0.5 Ohm up to 3 GHz.

This is important, since otherwise the signal will be reflected up and down the cable (i.e. standing waves). Such signal reflections deteriorate signal integrity by causing the digital audio signal as seen at the receiving end to be overlapped with time delayed replicas of itself (i.e. signal reflection induced inter-symbol interference).At the receiving side this negatively influences the D-to-A converter clock retrieval circuitry’s (PLL’s) ability to maintain a stable sample rate (i.e. fluctuations in the timing interval between the audio signal’s samples occur).
The resulting distortion of the audio signal is officially called “jitter distortion” and is particularly perceivable as reduced resolution and imaging.
